MiTM Air Compressors AM1PH6508HD 2012 Valve Plate Replacement

Geschrieben von: Kyle Smith
  • Kommentare: 0
MiTM Air Compressors AM1PH6508HD 2012 Valve Plate Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

How to replace the valve plate in a Mi-T-M Air Compressor AM1-PH65-08HD 2012.

  1. 1BMEmi1dCWvFxJXk
    1BMEmi1dCWvFxJXk
    rsdlmQMNjrrrfgJx

    • Before you begin, make sure the device is powered down and cool to the touch.

    • Flip the engine switch into the OFF position.

  2. 6QFrwaUyZaV352YF
    6QFrwaUyZaV352YF
    UBFBdZ5EDZqEIq3V

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  3. JNRgETcPYiaDvIVA
    JNRgETcPYiaDvIVA
    q21e555dEIBpb5jn

    • Pull the ring on the safety relief valve away from the compressor tank to drain the air from the compressor.

    • Ensure the tank is completely depressurized before starting repairs.

  4. jsPCObgljPZWTSRs

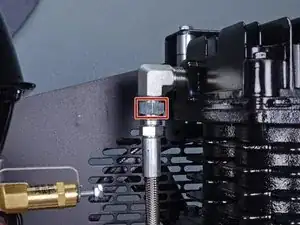

    • Use a 7/8 inch wrench to loosen the nut securing the pump discharge line to the elbow on the cylinder head.

  5. qYHrw2nbLvEocU5J
    qYHrw2nbLvEocU5J
    hQECkoModb1YeBQp

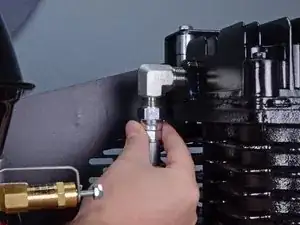

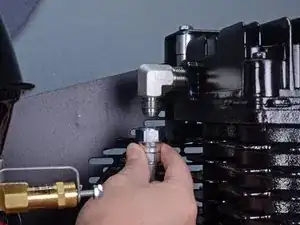

    • Remove the pump discharge line from the elbow.

  6. IMxABAJAiTd1hZwA

    • Use a 10 mm socket to remove the bolt securing the belt guard.

  7. WkGnAZVU3lsJZoWF
    WkGnAZVU3lsJZoWF
    SYfholHSZgMqjACQ
    qQHgxGrA1cFT2GaM

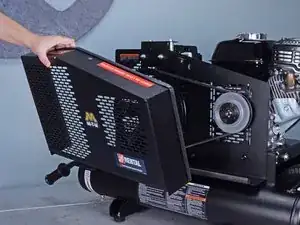

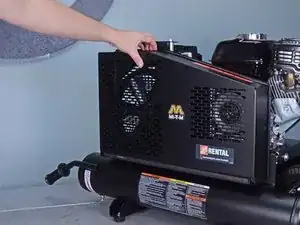

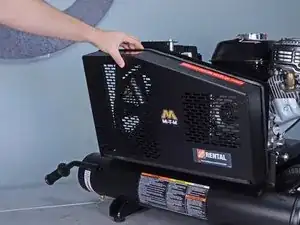

    • Tilt the belt guard away from the device and lift it out to remove it.

  8. wDbJ1mNLYXPZgIrB

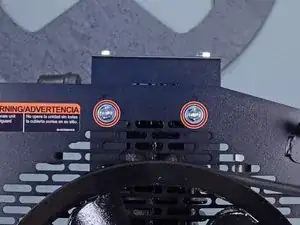

    • Use a 7/16 inch socket to remove the nuts and accompanying bolts securing the belt guard bracket to the rear belt guard.

    • You may need to hold the bolts in place with a 7/16 inch wrench during removal.

    • Don't misplace the washers that are removed during this step.

    • During reassembly, you may need to slightly loosen the two head bolts securing the belt guard bracket in order to properly align the bracket with the mounting holes in the rear belt guard.

  9. ZUacjCT6V4CmkuZR

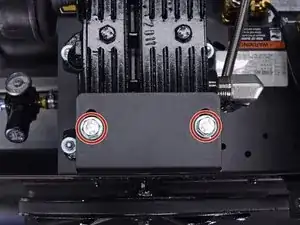

    • Use a 1/2 inch socket to remove the two bolts securing the belt guard bracket to the cylinder head.

    • Don't lose the loosened spacers underneath the belt guard bracket.

    • Don't misplace the washers that are removed during this step.

  10. BSXxPpWfoCAJHEvP
    BSXxPpWfoCAJHEvP
    BW13kAOoay3Kg1Fw

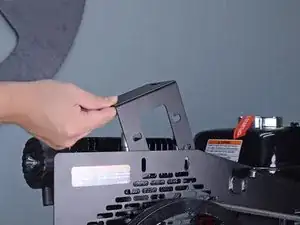

    • Lift the belt guard bracket straight up to remove it.

  11. vgogGC1FWApgNk41
    vgogGC1FWApgNk41
    veIPOyeVvqtIw2DD

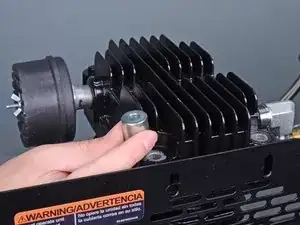

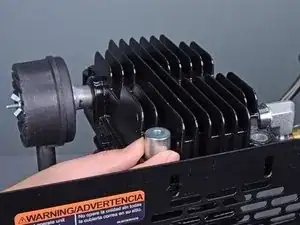

    • Remove the four spacers from the top of the cylinder head.

  12. EElWrvupWUFW1MKi

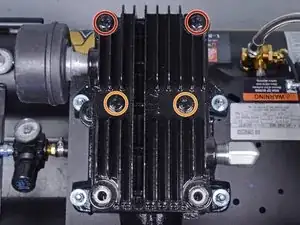

    • Use a 1/2 inch socket to remove the four remaining bolts securing the cylinder head:

    • Two 2 1/8 inch-long bolts

    • Two 2 1/2 inch-long bolts

    • During reassembly, install all six head bolts at once, and only until hand-tight. Then, fully tighten the six bolts in a star pattern.

  13. OOZf6EkAPQQnV3XA
    OOZf6EkAPQQnV3XA
    TvSFCFXCSA6fNhtv

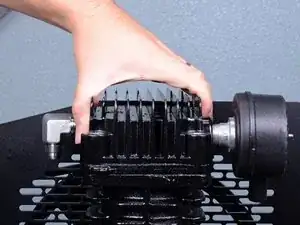

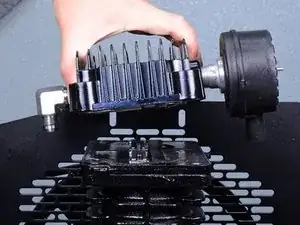

    • Remove the cylinder head.

  14. GEL5uoGwLFSb3A4V
    GEL5uoGwLFSb3A4V
    uSVLDkRuWZ1fFeWS

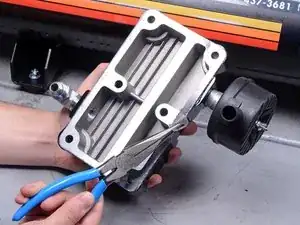

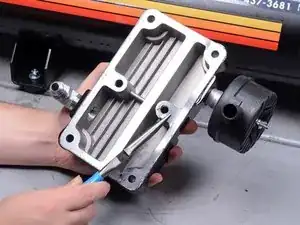

    • Remove the gasket from the cylinder head.

  15. GDVQcPI4qrjlGbxt
    GDVQcPI4qrjlGbxt
    XH1TtKvPyTZy6wWL
    41sucSsGNwSeJCgL

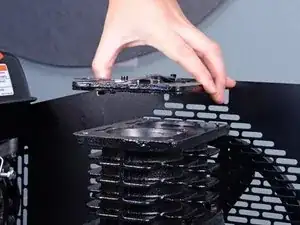

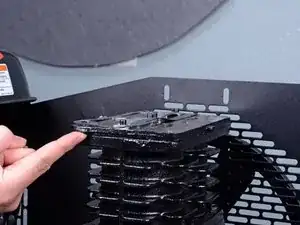

    • Push up on one of the valve plate tabs to break the seal between the valve plate and the gasket.

    • Remove the valve plate.

  16. YSSvUUGDWoybJJfU
    YSSvUUGDWoybJJfU
    qkihVnBGAL2OeLAF

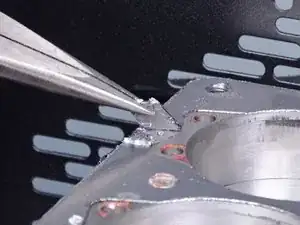

    • Remove the bottom valve plate gasket from the top of the cylinder.

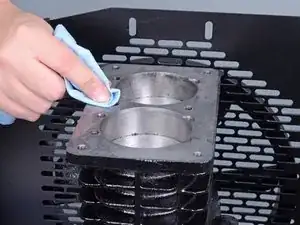

    • Use a shop towel to remove any remaining pieces of the gasket on top of the cylinder.

    • Use compressed air to remove any gasket debris or other small particles from inside the cylinder.

    • During reassembly, note that the two gaskets in the valve plate kit are fragile. Bending the gaskets may cause them to break.

Abschluss

To reassemble your device, follow these instructions in reverse order.
