MiTM Pressure Washer CM1400HDEC1 2017 Power Switch Replacement

Geschrieben von: Taylor Dixon

Kommentare: 0

MiTM Pressure Washer CM1400HDEC1 2017 Power Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

Follow these steps to remove or replace the power switch in a MiTM CM1400HDEC1 2017 electric pressure washer.

This repair requires you to work in a small space next to a large capacitor. Don’t remove the insulated wires attached to the capacitor unless you have the tools and the knowledge required to safely discharge it.

Werkzeuge

Ersatzteile

Mi-T-M Power Switch 32-1089

Schritt 1

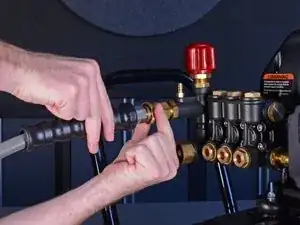

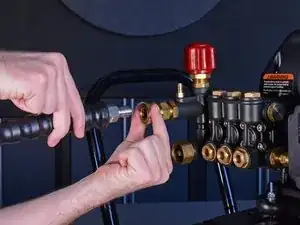

Disconnect all hoses and unplug the power cord before performing any repairs on the Mi-T-M electric pressure washer.

Schritt 2

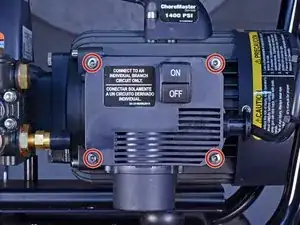

Remove the four 59.2 mm-long 4 mm hex socket bolts from the electrical box.

Schritt 3

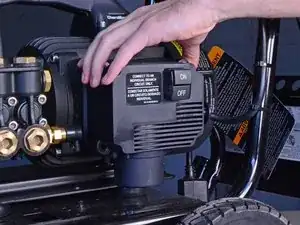

Carefully pull the electrical box away from the engine until you have enough space to work inside it, making sure not to strain the cables that are still connected inside.

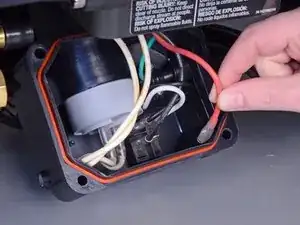

If you have trouble lowering the electrical box, you can disconnect the green power cord wire for more slack.

Schritt 4

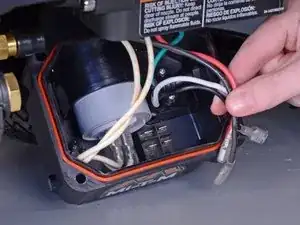

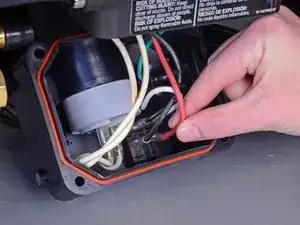

Disconnect the four wires running to the backside of the power switch.
These wires may be difficult to remove. If necessary, you can use a pair of pliers to gently pull them up off their contact rails.
