Microsfoft Band 2 Batterie wechseln

Geschrieben von: Chris Syracuse
  • Kommentare: 23
Microsfoft Band 2 Batterie wechseln

Schwierigkeitsgrad

Mittel

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

Diese Anleitung zeigt dir, wie du die Batterie deines Microsoft Band 2 wechselst. (Bekanntes Problem beim Band 2)

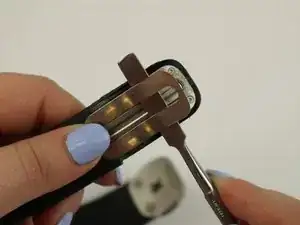

  1. moofpP3UPsPah2Us

    • Entferne die Metallplatte am Ende des Armbandes.

    use heat to soften the glue and if you are gentle, you will be able to save the cover.

    Joseph DeVaney -

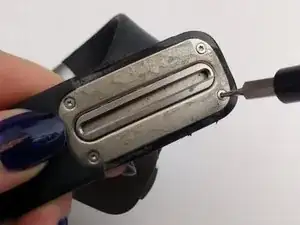

  2. uUTGlLRCJmOmtFMJ

    • Nutze einen T3 Torx Schraubendreher, um die 4 Schrauben in den Ecken der Metallplatte zu entfernen.

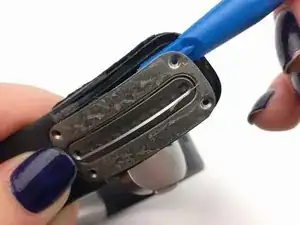

  3. gKPXpRXEcXvlJXts

    • Verwende das Öffnungswerkzeug, um die Abdeckplatte aus Metall zu entfernen.

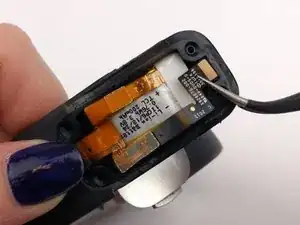

  4. FG16oqRE3X2c5QqR
    FG16oqRE3X2c5QqR
    wrgvf6QRvcLWAekb

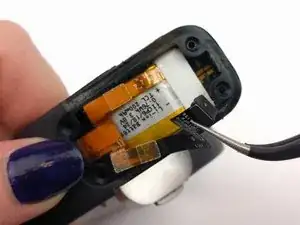

    • Löse das schwarze Flachbandkabel mit einer Pinzette.

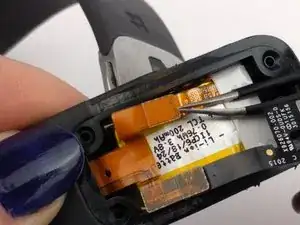

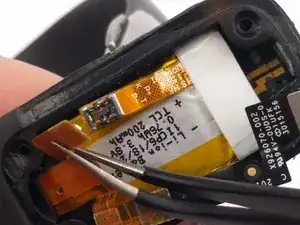

  5. HTOErGnhtKPfZVUh
    HTOErGnhtKPfZVUh
    5xEA2NdthT4dbDEo

    • Trenne die orange Verbindung mit einer Pinzette ab.

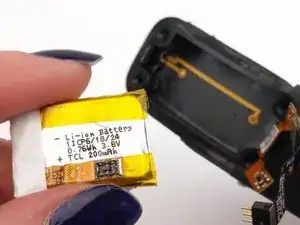

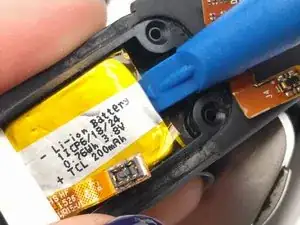

  6. EvZPJagTIeoyqxMl
    EvZPJagTIeoyqxMl
    qpdY315QgsHoSoIA

    • Hebe die Batterie mit dem Öffnungswerkzeug aus dem Gehäuse.

    Any source for the battery?

    I've been waiting for someone to post something like this. Thank You

    Bob Grosh -

    Try to search in ebay, i don't be able to post link with this battery because the system marked it like spam...

    campy -

    Did anyone do this get a battery and have any luck. I just took mine apart and wondering if it is worth $30 for a battery

    p_a_mckenzie -

    Yes, I did this and it worked perfectly fine. The hard part is finding the right battery.

    Kyle Vest -

    Found the battery on ebay for $20. 1ICP6/18/24 is the part to search for

    Joseph DeVaney -

    hello i just took the battery off and put a new one. i think that the black ribbon cable doesnt reconnect well, since when i put it all back together the watch only show the charging logo and when i unplug it it just turns off. Can anyone help me please ?

    CottonDoux -

    Hi, thank you, manuel worked! However, do you have any hint how to best glue the metal plate from the first step? While removing it has been bent a bid. Thank you.

    Midman -

    When I opened mine up, the black ribbon cable has split in two, which I guess was my problem in addition to/instead of the battery. Everything else looks fine but where would I even start to fix that? Is a part possible? Any help would be muchly appreciated.

    Adam Shuttleworth -

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.
