Microsoft Band 2 Buttons Replacement

Geschrieben von: Chris Syracuse

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten

Einleitung

In the event that the buttons on the side of the Microsoft Band 2 become jammed or unresponsive, follow this guide to learn how to remove them for cleaning or replacement.

Werkzeuge

Schritt 1

Wear proper gloves when using a heatgun.

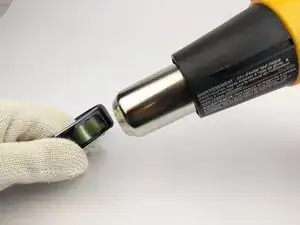

Use a heatgun to melt the adhesive beneath the screen. Heat the metal around edges of the screen.
Avoid heating the rubber watch band as it will quickly melt.
Heating the LCD screen may damage it. Avoid this procedure unless you intend to replace the screen.

Schritt 2

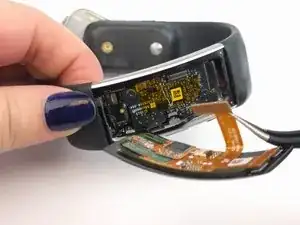

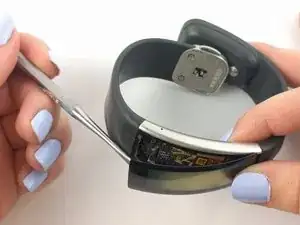

Use a spudger and plastic opening picks to pry the screen away from the Band 2.

Schritt 3

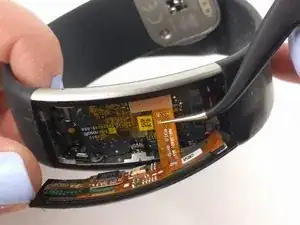

Use metal tweezers to gently detach the orange press-fit (or "pop") connector.

Schritt 4

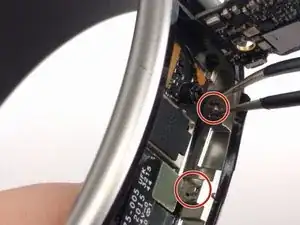

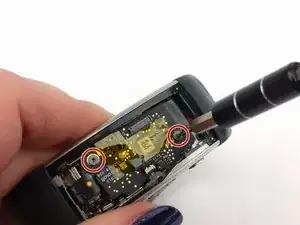

Use the T3 Torx Screwdriver to remove the two 2.7 mm screws

Schritt 5

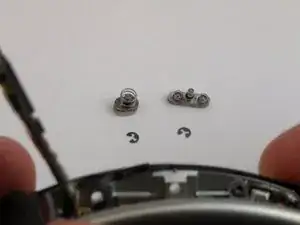

Lift the logic board and locate the two circular clips securing the buttons from inside the wall of the Band 2. Remove them by sliding the clips sideways.
