Microsoft Lumia 535 Disassembly

Geschrieben von: Dawid Bartniczak
  • Kommentare: 0
Microsoft Lumia 535 Disassembly

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

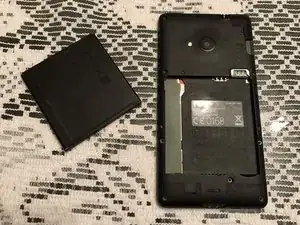

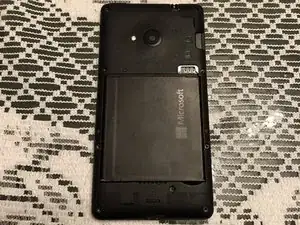

  1. DYLZZB1XijlwwDVE
    DYLZZB1XijlwwDVE
    CWMaTAvJg6wmjSAk

    • Turn off phone first

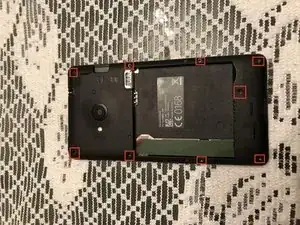

  2. eX2lpavYoqWPfWtq

    • Torx T4 screws

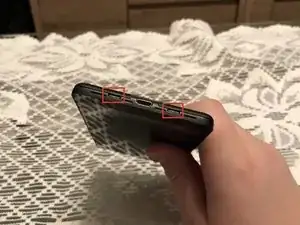

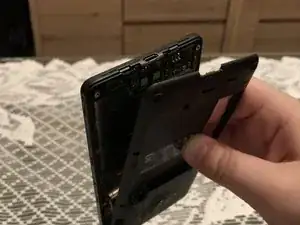

  3. EE1TtOhMVLuwKLVQ
    EE1TtOhMVLuwKLVQ
    XM1IJYQsoROFbjtv

    • Places to start

    • Use your finger or credit card.

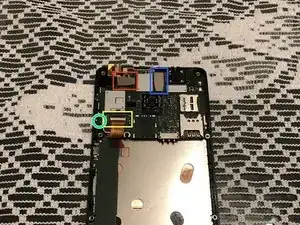

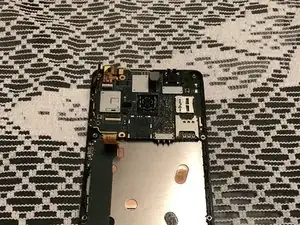

  4. abNtFpAWMEELUQnh
    abNtFpAWMEELUQnh
    FC1jaFmwfXtOTlwk

    • Display ribbon

    • Digitizer ribbon

    • Micro-USB dock cable

    • Antena cable

    • Be careful while unplugging those. They are breaking very easy.

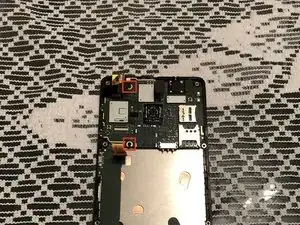

  5. QRtSrDDSylWNt3mP

    • Torx T4 screws

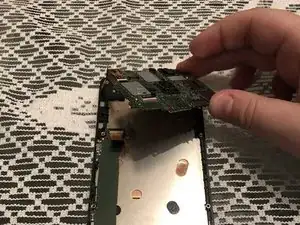

  6. hRfyW66KQQeZ5dkD

    • Lift it and pull it towards you

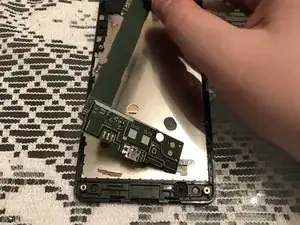

  7. MqLWRpF6BQB3pqmk

    • Lift it

Abschluss

To reassemble your device, follow these instructions in reverse order.
