Microsoft Lumia 640 LTE Front Screen Replacement

Geschrieben von: Nick Johansen
  • Kommentare: 19
Microsoft Lumia 640 LTE Front Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

15 - 45 Minuten

Einleitung

This repair is very easy and will only take 25-45 minutes.

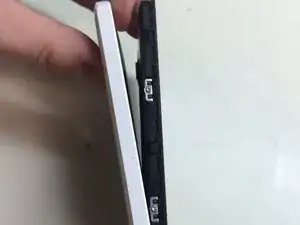

  1. KNejuDMDUkHAIcmt
    KNejuDMDUkHAIcmt
    6B2bf2TFZFdTqdHW
    XsFNOIJpuj5cPxyi

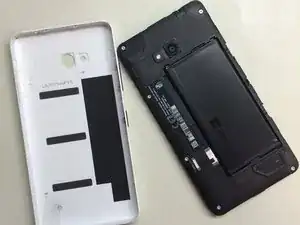

    • Back comes apart easily

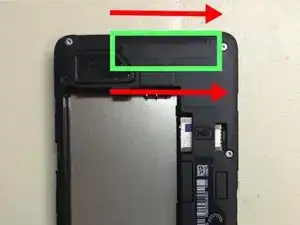

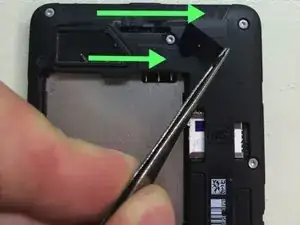

  2. vb3aQXxrIZtTVcK3
    vb3aQXxrIZtTVcK3
    MYOydwVpuSOL2hLa

    • Peel the tape from left to the right.

    • Under the tape there is a hidden screw.

  3. HsjSwqBdUEHgovmt

    • Take these screws out, and remember organize your screws so you know where they are going when you are putting the phone back together.

  4. 1OPew5jlsTAmt2pG

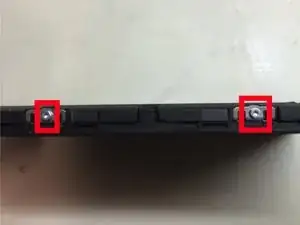

    • Turn the phone on its side and there are two (2) more screws that needs to be taken out.

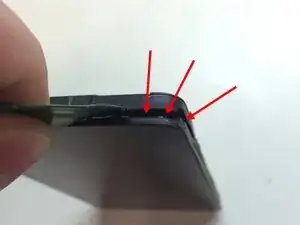

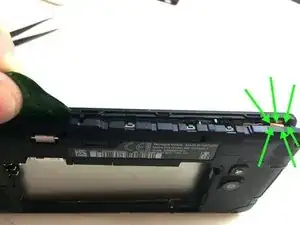

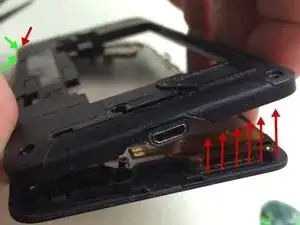

  5. A3FftpIkusYZPYBM
    A3FftpIkusYZPYBM
    FiauwRpggknqQnXh
    bSHGfMdOu1ANYxj2

    • Be careful of the top left corner of the phone, the connecting cable is sitting there.

    • The green arrows indicates where the cable is, so be careful

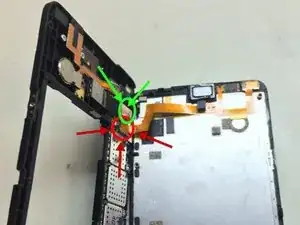

  6. IuImfGg53qflJPxO
    IuImfGg53qflJPxO
    GwQxy1TUykaHL4oP

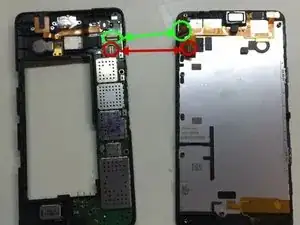

    • disconnect the two connectors here: Green, and Red.

    Reconnecting these is quite fiddly.

    Julian Feuchtwang -

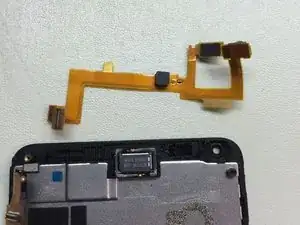

  7. nNrbZXBOVmVGDxHu
    nNrbZXBOVmVGDxHu
    TKWl5ZpKQE35jJqN
    yGEJSYYFIXVgZZIK

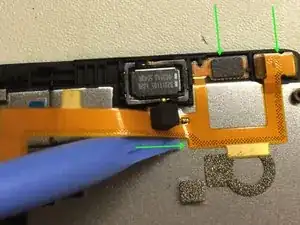

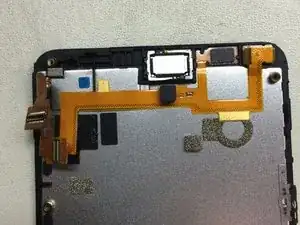

    • Carefully remove the cable.

    • Top two arrows indicate Camera, and chip. Button arrow indicate the way it is easiest to get the cable off.

  8. ED3wrSJJhhNlDQSq

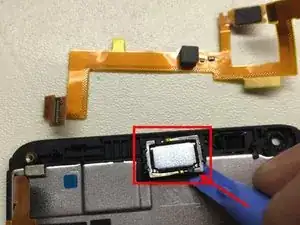

    • The speaker comes out really easy

    • Do not fear, it is not attached by a cable but only glue.

Abschluss

To reassemble your device, follow these instructions in reverse order.
