Microsoft Lumia 640 XL Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

This replacement guide will show how to remove and replace the headphone jack in the Microsoft Lumia 640 XL.

  1. D1IWaaYoYGefYmIM
    D1IWaaYoYGefYmIM
    j5gDBMUJ5QTAjKro
    46S3dWXCFmsDOVdM

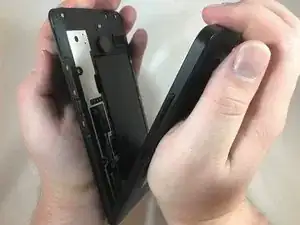

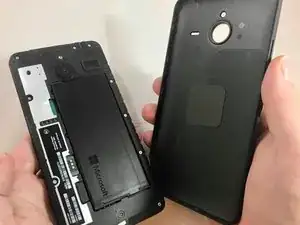

    • Place left palm on screen and right palm on the back.

    • Press down with fingertips and pull to separate the back from the screen.

    • You may hear cracking and popping.

  2. FlWfeivUFuBZMGC5
    FlWfeivUFuBZMGC5
    jsv1thZjFKoPpkNE

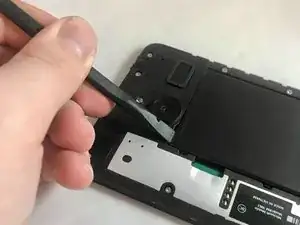

    • Lift the battery away from the phone with the flat side of a spudger.

    • Be careful not to damage the battery.

  3. QW3SDroaZM3YgKMR
    QW3SDroaZM3YgKMR
    MgPqmaFLmrxLVqAw
    yjvOMEjGnkq4WeM3

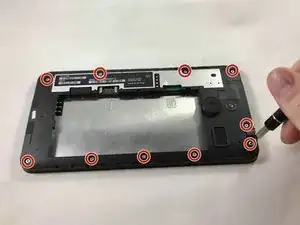

    • Remove all ten T3, 4.09 mm screws.

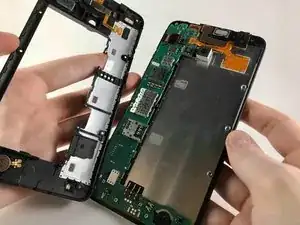

    • Lift mid-frame assembly from phone with flat side of a spudger.

  4. CTid6TqJ4ikEpHll
    CTid6TqJ4ikEpHll
    GtTjHjFjTZx6Xx4H
    ZSxak2Hnb1uCCDDE

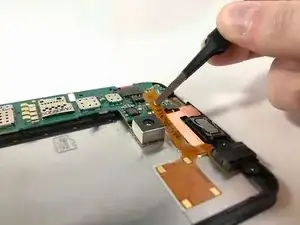

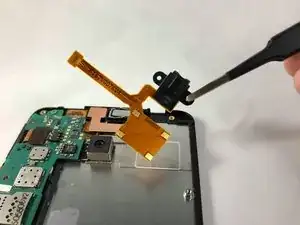

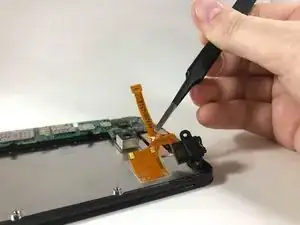

    • Lift and peel connector away from phone using tweezers.

    • To re-attach you may need E6000 Adhesive Glue.

Abschluss

To reassemble your device, follow these instructions in reverse order.
