Microsoft Lumia 950 XL Screen Replacement

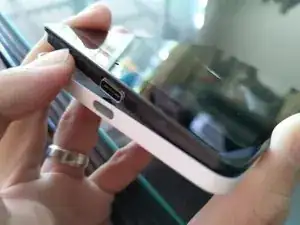

The Lumia 950 XL back cover is super easy to remove. There is a dent at the bottom of the phone to guide you to where you should start working.

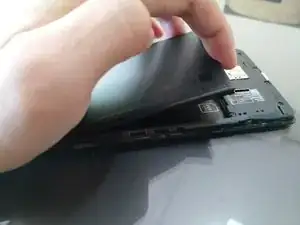

Crack the back cover open using your fingers.

Lift the battery out using your fingers.

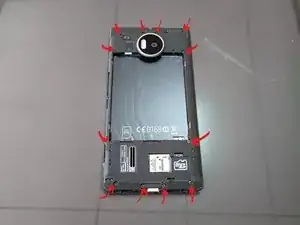

Unscrew the 12 Torx screws (T5) in the back panel.

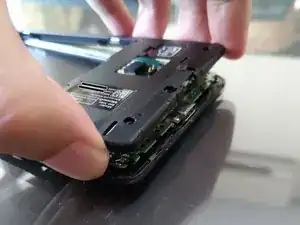

Lift the back plate from the bottom of the phone.

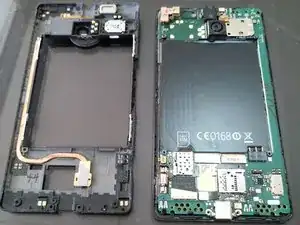

Now that the back plate is off, it shows various interesting components like the heat pipe, earpiece & loud speaker.

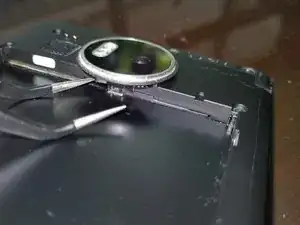

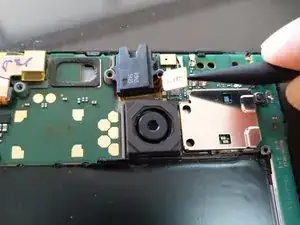

Remove the headphone jack connector using a spudger. Then lift using a tweezer.

There are three connectors that need to be disconnected before working with the motherboard.

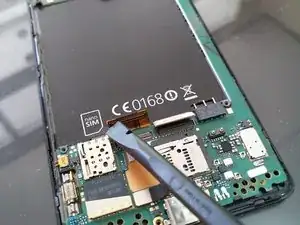

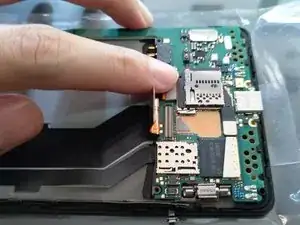

With a spudger, remove the first two connectors.

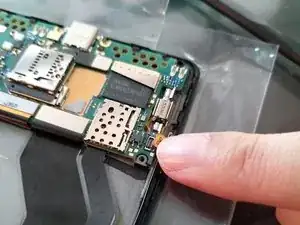

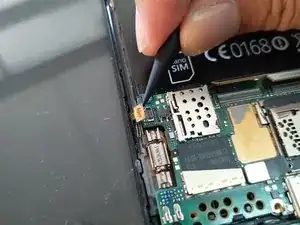

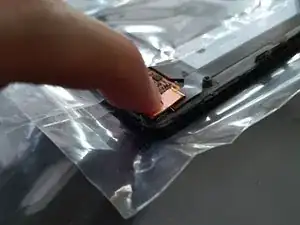

Another small connector is connected with the side buttons. Again, disconnect them using a spudger.

The motherboard is clipped with the back of the display panel.

Start working with the top right of the phone. Remove the motherboard from the clip by hand or use a Jimmy to leverage in little force to make it easier.

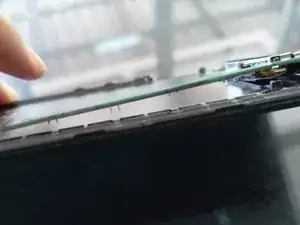

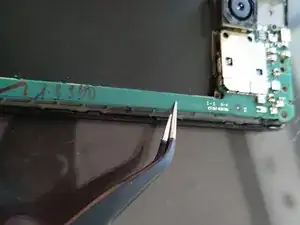

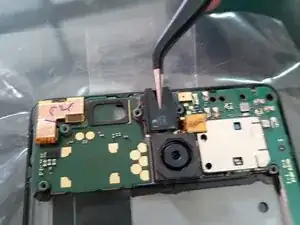

Use tweezers to lift the motherboard up. This may require a little force since this part of the board has little clips underneath.

Continue working with the motherboard all the way around till the bottom half of the phone. Straightforward!

One last connector needs to be disconnected on the back of the motherboard.

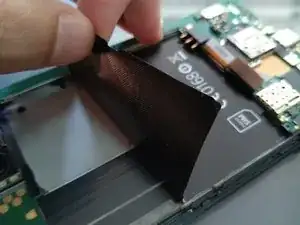

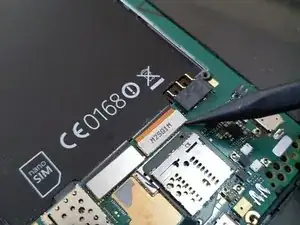

Start by peeling of the sticker beneath the battery.

Lift the motherboard up, starting from the bottom of the phone, and flip it gently. You will see the hidden connector.

Disconnect it with a spudger

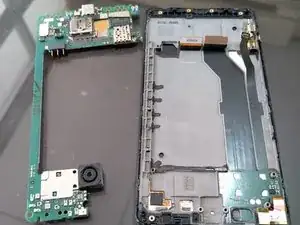

Now the motherboard can be removed.

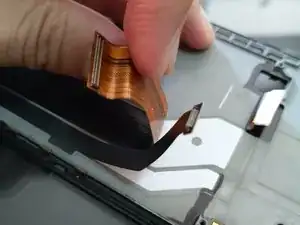

Remove the two connectors that connect the daughter board with the motherboard. They are lightly adhered in place and can be peeled off easily by hand.

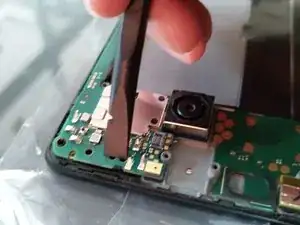

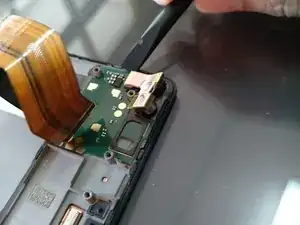

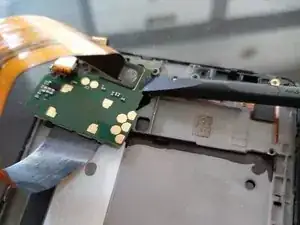

Remove the daughter board by using a spudger.

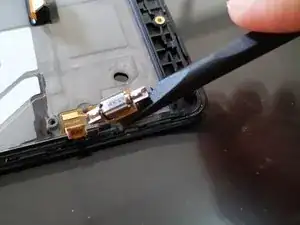

Remove the vibrating motor using a spudger.

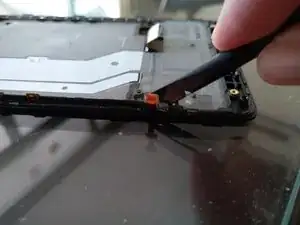

Remove the side panel with a spudger. It is lightly adhered but can be lifted by fingers or a tweezer.

Start the assembly process by placing the daughter board into the new screen

Place the vibrating motor back into its place.

The new screen should come with a light adhesive to hold the two cables from the daughterboard.

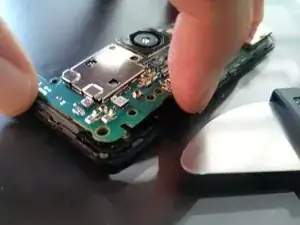

Reconnect a connector on the back of the motherboard, clipping the board in place. Start with the top right corner of the phone and push the motherboard into the clips using a spudger.

Reconnect all 3 connectors.

Place the headphone jack and connect it to the motherboard.

Reapply the sticker beneath the battery

Place the back panel on top of the motherboard, and screw in all 12 screws!

After closing of the back cover, try turning the phone on!!
