Microsoft Surface 2 Volume Control Replacement

Geschrieben von: oluchianya
  • Kommentare: 5
Microsoft Surface 2 Volume Control Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

40 - 50 Minuten

Einleitung

If your volume control button has been getting stuck or malfunctioning, it is very likely that it needs to be replaced. This guide is a step by step process on how to go about fixing it.

  1. KoTYec23XD4Z5k1J
    KoTYec23XD4Z5k1J
    kJvTfky6UOhvkXIt
    AZei5oNPwqp13L24

    • Begin by using a heat gun or the iOpener (This will take longer.) to melt the adhesive all around the outer edge of the screen.

    • Avoid holding the heat gun too close to the Microsoft Surface 2 so as to not cause any unwanted warping.

    • Avoid touching the metal end of the gun. It will be very hot and can burn you.

    • Insert the opening picks just under the screen and black edging. Be sure to place them evenly on each side.

    • Using the gap created by the picks, slowly pry the screen from the body of the Microsoft Surface 2 with a plastic opening tool. Pry as uniformly as possible.

    there is no mention of just how strong the adhesive actually is. i might go as far as to say this has been one of he hardest i have ever had to separate. its a combination of the strength of the adhesive and the amount of it to get through. i use a heat mat rather than a heat gun as its far better than the gun.. been able to control the temperature by 1 degrees up to 100. also the digitizer runs right to the edge of the glass, so its possible to damage it while trying to remove the screen.

    stuart -

  2. jAv6jcMOxvbhiCFU
    jAv6jcMOxvbhiCFU
    LRFUgYXh2BhW3R16
    kSBTSotUQ1bNoewh

    • Once the screen is free from the body, there will be a single ribbon cable connecting the screen to the motherboard.

    • Use a plastic spudger to pry the retaining clip away from the display cable.

    • The ribbon cable may be glued to the motherboard.

    • Carefully pull the ribbon cable from its socket on the motherboard.

    Please tell people about unlatching the socket lock before trying to remove the ribbon cable from the socket on the motherboard! The white latch handle is still in the locked position in the photograph showing the ribbon cable being pulled. (And they’ll NEVER get the ribbon cable back in the socket without raising that latch!)

    Tom Straub -

    Be sure to get just under the glass. There is a thin black edging under the glass. I found it better to start at the bottom edge.

    There is a lot of glue, and it is about 1/2” wide.

    Do no overheat. The frame is plastic and can deform.

    If you want to preserve the screen, be careful near the bottom edge near the windows logo. There are 2 flex cables, one on either side of the logo. If you stab a tool too far in, you may tear a cable.

    If you have a new screen “without cable”, the directions are slightly different. Do not disconnect the ribbon cable from the motherboard. Instead, locate and remove 3 hexalobe screws that attach a narrow circuit board to the display. Carefully lift the narrow circuit board, disconnecting two sockets from the display board. Roll this narrow circuit board over and locate 2 flex cables. Lift the flaps on each flex cable to reveal the zif sockets underneath. Use a fingernail or plastic spudger to lift up the catches on the zif sockets and slide out the flex cables.

    michael -

    Where do you buy actual oem replacement speakers for this tablet???

    bob king -

    I'm assuming the go 1 speakers, Will not work with this tablet.

    bob king -

  3. xWbnRX6IJYALARiX
    xWbnRX6IJYALARiX
    wsQGIFdAbjPpsJRq

    • Work close to Magnetic Project Map to avoid losing screws.

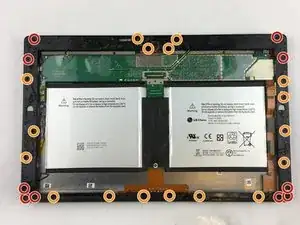

    • Remove ten 3.45 mm T3 screws from the corners of the black plastic bezel.

    • Remove the remaining seventeen 4.4 mm T5 screws from the perimeter of the bezel.

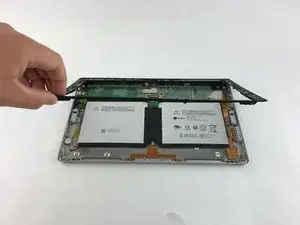

    • Once all screws have been removed, lift and remove the bezel from the rest of the device.

  4. 5VboAP1CeVTw43BG

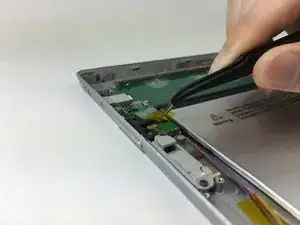

    • Gently peel off the yellow plastic tape using a pair of tweezers.

  5. aXvKyTnAYUKgNFR3

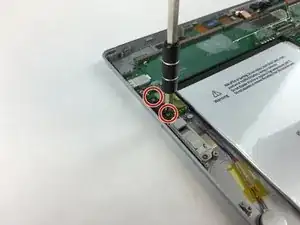

    • Remove the two 1.70 mm T3 screws from the volume control switch.

    • Work close to Magnetic Project Map to avoid losing screws.

  6. dhtVXyf2nFV1IYVp

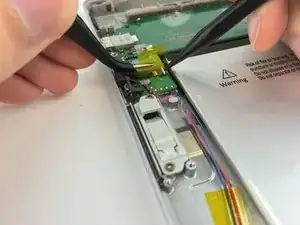

    • Use a spudger to lift up the retaining flap on the volume control cable ZIF connector.

    • Make sure you are prying up on the retaining flap, not the connector itself.

  7. 2bloZDfjk2EJ16iF

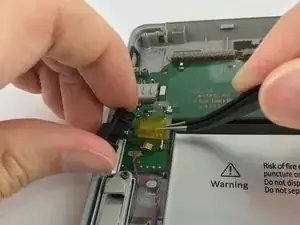

    • Now that the volume control switch is loose, pull it gently away from the motherboard.

    • No force is needed to plug in or remove the ribbon cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
