Microsoft Surface Book Keyboard Back Panel Replacement

Geschrieben von: Natalie Weisenburger
  • Kommentare: 1
Microsoft Surface Book Keyboard Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

2 Minuten

Einleitung

This guide will show you how to remove the back panel of the keyboard so that you can see the internals of the keyboard.

  1. 4yMF5QmF1iK3Imce

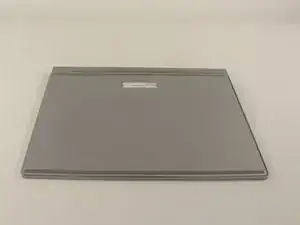

    • Flip the keyboard over so you can see the back panel.

    In this photo, there is a clear crevice around the edge of the panel and the keyboard. On my Surface Book, there is no such crevice. The panel is flush up to the keyboard with a gap that looks to be maybe 0.2mm max. There is no way to fit a tool into the crevice to lift off the panel. Any tips?

    Darren Reynolds -

  2. MmePANLn3kxmbknI
    MmePANLn3kxmbknI
    RJiuwiYNGjvwbBtX

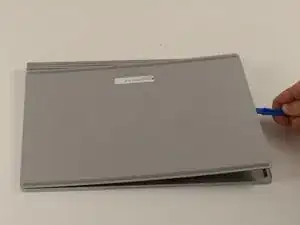

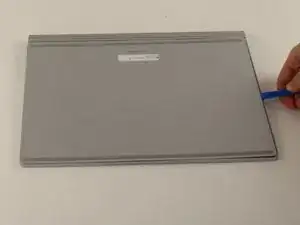

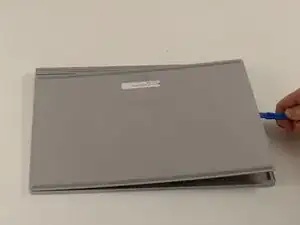

    • Insert the plastic opening tool in the crevice between the panel and the keyboard.

    • Apply some pressure and lift up so that the back panel is pried away from the keyboard.

    • The panel is glued down on the inside so this may require some force to lift away the panel.

    • Continue to lift until the panel is completely separated from the keyboard.

    • The panel is still attached to the keyboard by a ribbon cable so only lift the panel a few inches.

  3. 15q32v5UktOlYHOe

    • Lift the panel away with the ribbon cable still attached and set aside the panel so that you can work on other components.

Abschluss

To reassemble your device, follow these instructions in reverse order.
