Microsoft Surface Book Keyboard USB Port Replacement

Geschrieben von: Natalie Weisenburger

Kommentare: 6

Microsoft Surface Book Keyboard USB Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 30 Minuten

Einleitung

Follow this guide to remove or replace a faulty USB port assembly on a Microsoft Surface Book.

This procedure requires you to remove the back panel. Note: It’s not necessary to remove the SD card to get to the USB ports.

Werkzeuge

Schritt 1

In order for the keyboard to be detached with the Detach buttons, both batteries must be charged above 10 percent. If your device doesn't power on and you can't use the Detach buttons, skip to the next step.
Press and hold the Detach button on the keyboard.
Once pressed, the Detach button it will light up red. After a second, it’ll turn green and you’ll hear an audible clicking sound.
Alternatively, click the Detach icon on the right-hand side of the Windows 10 taskbar.
Remove the display.

Schritt 2

The next six steps show how to detach the display manually if you’re unable to power on the Surface Book.
Flip open the display as far as it will go.
Lift the device up and place it on its side, with the display facing away from you and the SurfaceConnect port facing up.

Schritt 3

Straighten out one section of a paper clip.

Schritt 4

The Surface Book has an internal lever arm mechanism that can be manually actuated through an access hole in the vents on side of the display.
Insert the straight end of the paper clip at a 45 degree angle into the sixth hole from the left.

Schritt 5

Firmly push the paper clip into the hole.
This may take a considerable amount of force.
Once the internal lever arm is fully depressed, you can disconnect the display.
Pull the base away from the display to detach it.
If you are unable to detach the display from the base on this side, release pressure on the paper clip and try again.

You should feel slight resistance when pressing against the internal lever arm. If you don’t feel the resistance after about half an inch, back out and try again. Be careful not to push the paper clip too far, as it can scratch the screen bezel from the inside, leaving a visible mark.

Alexander V Trofimuk -

Schritt 6

The magnetic connections are prone to snap back into place, so hold the two halves apart.
With one side detached, pull firmly to pivot the display out to disconnect the second side.
If the magnetic connection feels extra strong and the display won't detach on the second side, keep the detached side separated with a spudger, pen, or pencil, and repeat the paper clip process on the other side of the display.

Schritt 7

Remove the display.
Completely power down your Surface Book before opening it up for any repairs.

Schritt 8

Flip the keyboard over so you can see the back panel.

In this photo, there is a clear crevice around the edge of the panel and the keyboard. On my Surface Book, there is no such crevice. The panel is flush up to the keyboard with a gap that looks to be maybe 0.2mm max. There is no way to fit a tool into the crevice to lift off the panel. Any tips?

Darren Reynolds - 04/07/18

Schritt 9

Insert the plastic opening tool in the crevice between the panel and the keyboard.
Apply some pressure and lift up so that the back panel is pried away from the keyboard.
The panel is glued down on the inside so this may require some force to lift away the panel.
Continue to lift until the panel is completely separated from the keyboard.
The panel is still attached to the keyboard by a ribbon cable so only lift the panel a few inches.

Schritt 10

Lift the panel away with the ribbon cable still attached and set aside the panel so that you can work on other components.

Schritt 11

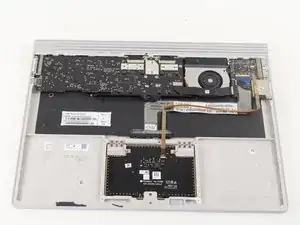

Orient your keyboard with the internals facing up and the USB Port on the right.

Schritt 12

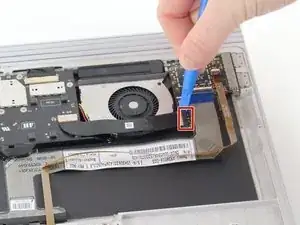

Use a plastic opening tool and remove the tab from the USB board

Schritt 13

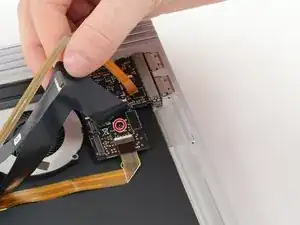

Lift up the black and gold wires and find the screw hidden there.

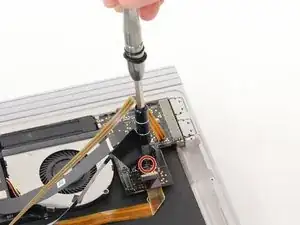

Use the T3 Torx Screwdriver and remove the four mm screw.

Schritt 14

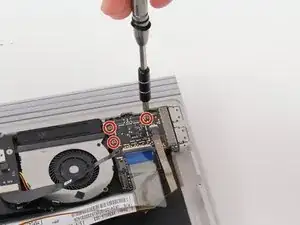

Use the T3 Torx Screwdriver to remove the remaining three 4 mm screws.

Schritt 15

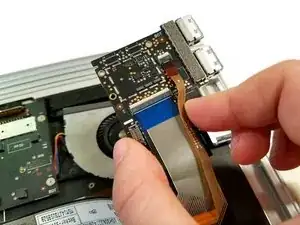

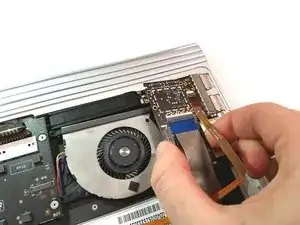

Wiggle the USB Port board away from the keyboard.
This may require some force.

Abschluss

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
