Microsoft Surface Pro 3 SSD Austausch

Geschrieben von: Erik Snyder
  • Kommentare: 31
Microsoft Surface Pro 3 SSD Austausch

Schwierigkeitsgrad

Sehr schwierig

Schritte

9

Zeitaufwand

1 - 2 Stunden

Einleitung

Diese Anleitung zeigt dir, wie du die SSD des Surface Pro 3 sicher austauschen kannst. Zuerst wird Bildschirm und Digitizer entfernt und dann die SSD. Die Anleitung enthält keine Informationen wie du die Daten auf der alten SSD auf die neue übertragen kannst.

  1. IiLLy5RGqI2C21Fc
    IiLLy5RGqI2C21Fc
    JifXbRFswEYOyZhX

    • Entlade den Akku des Surface Pro auf unter 25%, bevor du mit der Arbeit beginnst. Ein geladener Lithium-Ionen Akku kann Feuer fangen und/oder explodieren, wenn er während der Reparatur versehentlich beschädigt wird.

    • Das Display ist stark mit dem Rahmen des Gehäuses verklebt.

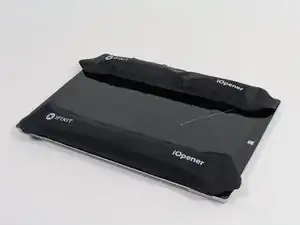

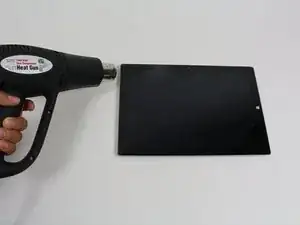

    • Um das Display zu entfernen, musst du den Kleber erst durch Wärme aufweichen. Du kannst einen Wärmeplatte, ein Heißluftgebläse odere einen iOpener verwenden. Zur Not geht es auch mit einem Haartrockner.

    • Sei mit einem Heißluftgebläse sehr vorsichtig. Zu viel Hitze kann das Display und/oder den Akku dauerhaft beschädigen.

    • Erwärme den Rand des Displays konstant und gleichmäßig, bis er zu heiß zum Anfassen ist. Versuche diese Temperatur einige Zeit lang aufrecht zu halten.

    I just replaced both my screen and battery. It took four hours and a couple of wrong turns but I was successful learning what to do next time. However, I am not sure I would do it again.



    It takes more heat than one imagines - all most too much and made me queasy fearing I was going to damage something. I would say it actually too hot and likely to damage something so be careful and do not prolong the removal. To get started I used a glass top warming/buffet heating tray set to about 200 degrees.  I turned the surface pro glass side down before turning it one so it would heat gradually with the tray. I let it heat for 15 minutes. In end, I am not sure it helped or not by starting this way.  This was not an easy removal so I shudder to think how worse it would have been if this didn’t help. I used a variable heat gun for the remaining steps. My screen was broken so breaking it further while nerve racking was not going to be catastrophic.

    michael jones -

    I attempted battery replacement, but during disassembly, i damaged the display by inserting the picks to far, and separating the display circuitry from the glass.

    I used a Milwaukee precision hot tool model 1400, which has only a fixed heat setting, but it worked perfectly to soften the adhesive.

    (I was very careful to heat the entire glass panel by playing the heat gun over the entire surface so that it would expand uniformly.

    Robert Gerlach -

    I just broke mine during the heating process as well…. The glue at the corner was so strong that I cant even slip a blade into the edge… Then when keep applying heat using a hair dryer at low tempreture the glass expanded too much and broke……

    C Y Wong -

  2. tP1SBUeGkGMfOjX5
    tP1SBUeGkGMfOjX5
    Hbta2bLf13RFqrbk

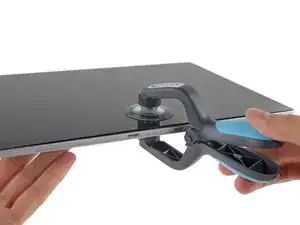

    • Ziehe die Glasscheibe mit einem Saugheber oder einem iSclack auseineander und erzeuge einen kleinen Spalt zwischen dem Glas und dem Metallrahmen.

    • Wenn das Display stark zerbrochen ist, dann hält der Saugheber nicht so gut. Es hilft vielleicht, wenn du das Display mit Klebeband zuklebst. Du kannst den Saugheber auch mit Superkleber am Display festkleben.

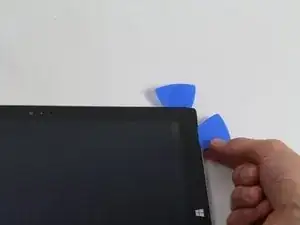

    • Setze vorsichtig ein Plektrum in den Spalt zwischen Scheibe und Gerät ein, um die Klebeverbindung aufzutrennen.

    • Schiebe das Plektrum an den Seiten und der Unterkante des Displays entlang, um die Klebeverbindung aufzutrennen. Falls nötig, musst du mehr Wärme anwenden.

    • Arbeite sorgfältig, das Glas ist dünn und bricht leicht, wenn du zu viel Kraft aufwendest.

    • Die Wi-Fi Antennen sind unter der Oberkante Am Rand der Glascheibe (an jeder Seite der Kamera) verklebt und können leicht beschädigt werden. Sei an der Oberkante besonders vorsichtig und wende mehr Wärme an, falls nötig.

    Be very very careful!! Don’t cut yourself. Wear gloves.

    Vincent van Mens -

    Wear eye protection too!

    Zach -

  3. ITFJIC242QKNpVUA
    ITFJIC242QKNpVUA
    kOlisXUZbyYIkKPE
    hBFsBRIsH4VyHVeV

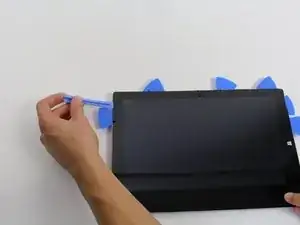

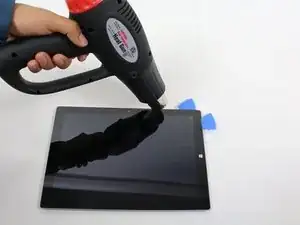

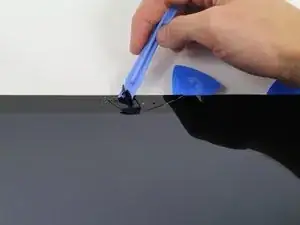

    • Fahre stückweise fort die Scheibe abzutrennen.

    • Während du die Scheibe weiter erwärmst musst du das Öffnungswerkzeug und weitere Plektren benutzen.

    • Die Scheibe ist extrem dünn und bricht leicht. Sei sehr sehr vorsichtig bei der Arbeit mit zerbrochenem Glas.

    I used an inexpensive variable heat gun with a dial. It was perfect. My fixed temperature gun would have ruined it. There are two small vents on either side of the screen near the top. Start there and work down on each side. I didn’t have opening picks to keep the glass separated from the body. So, I used blank Cards Against Humanity I found lying around.

    I watched two popular videos. Neither helped and were no better than these instructions. In one video, the guy heats and smashes his way around the display with metal tool. Mistake! Don’t do this even if the screen is broken. This causes glass shards to go everywhere and will force you to replace the adhesive before installing a new screen. You can’t reuse adhesive if it is full of glass. Another video uses a heat gun one side at a time and simply sliding a pick along the edge working around the Surface. This didn’t work. The person had already removed the screen once before and started the second removal before the video.

    michael jones -

    CAUTION: if you insert the picks too far, you risk damaging the display (separating the glass from the display circuitry).

    The display circuitry is 14 mm from the side edges, 10 mm from the top edge, and 6 mm from the bottom edge.

    Robert Gerlach -

  4. 2wnI62JYRjtwQyde
    2wnI62JYRjtwQyde
    XtSAtOnl55XIALpb

    • Hebe den Schirm vorsichtig hoch, achte dabei darauf, dass keine Kabel verdreht werden.

    This guide misses a CRUCIAL NOTE on this step.

    On this step, from Picture 1 to Picture 2 the device is rotated so the Windows logo on the glass is actually on the left hand side.

    You *must* rotate the device otherwise you will risk damaging the cables, as it folds open like a book.

    Len Demby, Jr. -

    Pain in the ass! One has to wonder why they couldn’t use magnetic connections instead of this goo, black thing that even to replace is so %#*@ annoying to say the least! After trying to remove a broken screen I didn’t even use the adhesive strips. I used the ones I had there and to be frank it’s better since:

    a) I couldn’t get the new screen properly aligned and to fit to perfection even though the touch works flawlessly (w/ some adhesive tape on the top to hide the gaps) and

    b) who knows? you may as well need to reopen it again. Hopefully not.Hopefully it will be easier. Hopefully never again!!!

    P.S.:

    Iraklis -

  5. JZKTg6AfXimEjrtV
    JZKTg6AfXimEjrtV
    ZnmLaLSWKZwXLQbk

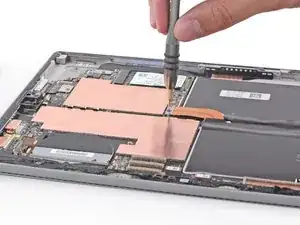

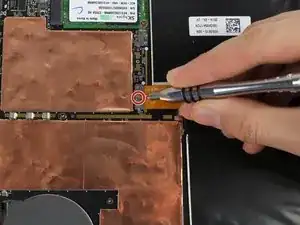

    • Der Akkuanschluss ist mit einer 3mm Torx T3 Schraube gesichert. Drehe sie heraus und löse den Akkuanschluss.

    • Dabei ist darauf zu achten, die darunter befindliche rechtwinklige Steckbrücke nicht zu verlieren!

  6. iieXwVFQKStTJgx2
    iieXwVFQKStTJgx2
    FseWAjfVVlTtIElr
    EXtrTCBmBrFVHUF2

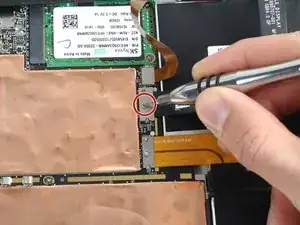

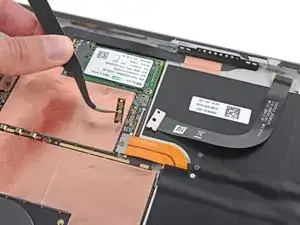

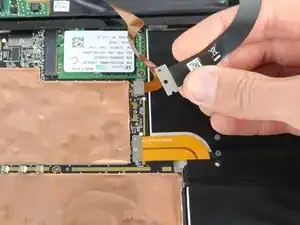

    • Löse die 4mm T3 Torx-Schraube welche das Bilschirmkabel sichert.

    • Hebe den Verbinder vom Gerät weg, um das Kabel abzulösen.

    • Dabei ist darauf zu achten, die darunter befindliche rechteckige Steckbrücke nicht zu verlieren!

    It's always best to disconnect the battery before disconnecting the display cable. Ensuring there is no power to the device will also ensure you don't damage the backlight components when disconnecting the display. You should also make sure to reattach the display cable before reattaching the battery cable when putting it back together.

    KCrepairguy -

    There is also a tiny little board between the ribbon cable and motherboard. Be sure not to lose it!!! If you do the part is 1631 LCD Contact Shield Plate.

    Joseph Neilson -

    You’ll notice a spring on the back of your old screen. The new screens don’t have that spring so it will need to be transferred over by the heat gun trick.

    Thierry Plouchart -

    The instructions do not mention the bridge connectors under the connectors - tiny little rectangle boards with gold connector dots. There is one under the battery connector and under the display connector. It is sandwiched in between the board and the connector. You may not even notice the bridge connectors. In fact the pictures here with the cable connectors off are showing the bridge connectors under the cable connectors still lying on the motherboard. Go ahead and remove the bridge connectors with tweezers. These connectors are just lying on the motherboard and WILL FALL OFF getting lost without noticing it. The cable connectors do not work without the bridge connectors installed. Good news is the connectors are keyed and fit only one way.

    BTW: Both screws on the battery and display connector were T3’s and the same size.

    michael jones -

    Hi!. What’s the name of the band connector and what’s the name of the connector in both sides?

    Nicolás Rearte -

  7. Z1WlbuZDAgkKVFiW
    Z1WlbuZDAgkKVFiW
    QNjSjbRDTeirpNKk
    YFw1T6xydkRpWpj4

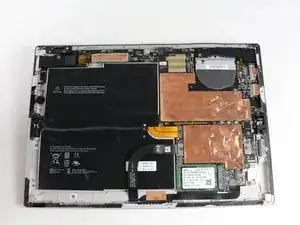

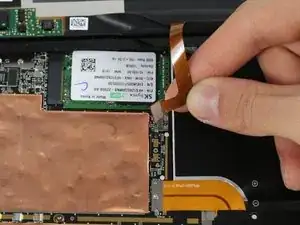

    • Fasse das orangene Kabel am silbernen Verbinder an.

    • Hebe das orangene Kabel vorsichtig hoch, bis der Verbinder herausspringt.

    • Der Bildschirm ist jetzt nicht mehr mit dem Gerät verbunden.

    • Das Ersatzdisplay enthält nicht unbedingt alle Teile, die für den Einbau benötigt werden. Hebe alle Teile des Originaldiplays auf und übertrage sie, wenn nötig, auf das neue.

  8. pIs3smPvtDEMCrVp
    pIs3smPvtDEMCrVp
    WOppAZXHWYkiuLyP
    ZQUoWvSK21TNPyWV

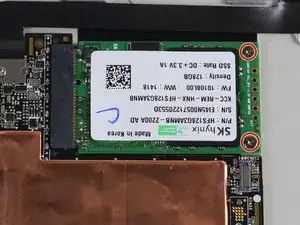

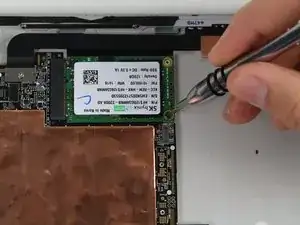

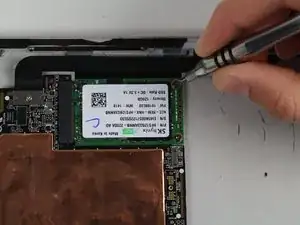

    • Entferne die beiden 4 mm T3 Torx Schrauben an der SSD.

    Small correction - The screws securing the SSD are 4mm T5 Torx.

    Chris Ibold -

  9. qKviuYXApYjPgcVh
    qKviuYXApYjPgcVh
    BcLrAKvJ2pFWYqQM

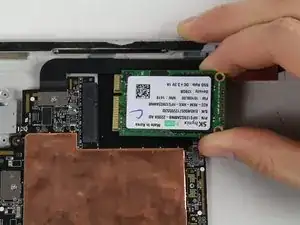

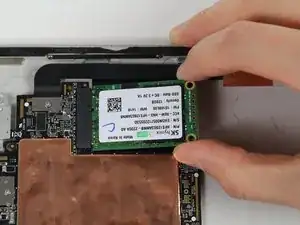

    • Hebe die SSD vorsichtig hoch und ziehe sie aus dem schwarzen Verbinder.

Abschluss

Um dein Gerät wieder zusammen zu setzen folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

Erik Snyder

Mitglied seit: 01/10/15

5079 Reputation

16 Kommentare

How do you replace the screen once the glue is melted?

bbhsascha -

would assume you heat and put the screen back...

Assuming you havent shattered the screen to oblivion in the process...

nyalldavis -

Is there a way to copy the files from the ssd card once removed?

Garry Lincoln -

yes, you would need an adapter to connect the msata to regular sata and connect to another computer.

Dan Wooton -

How's does the glass thickness compare to the Surface Pro 2? I've replaced a screen on a 2 without destroying it. Now I'm looking to replace an SSD on a 3. I'm wondering if I can expect the same type of removal.

jwelch414 -

Don’t expect the same removal. the 3 has thin glass, super easy to crack. i wasn’t able to replace mine without damaging the glass.

Tim Rauls -

its much much thinner. it cracks easy. dont ask how i know this

bacon -

Couldn't find a replacement hard drive ... my Surface 3 Pro is now toast ...

James Lindbloom -

Shouldn't be hard to find an m.2/mSATA SSD

Steve Moore -

I'm trying to upgrade mine to a 1 terabyte SSD how do I get a copy of my Windows 10 to make sure I have legit OS in the one terabyte hard drive

joshua ruster-mack -

The product key for Windows 10 is coded into the firmware of the Surface. You just need to use Microsoft’s Media Creation Tool ( https://www.microsoft.com/en-us/software... ) to create bootable media so that you can install it on your Surface.

Brandon -

Does this  SSD  fit directly into a PC with a MOBO that has a M2 SSD connector? Or are the tablet SSD connectors different?

Joel Hall -

The photos in this iFixit guide show that the screen was destroyed while unsticking it!!! There are cracks all over it during insertion of the plastic shims, and the lifted screen is missing large chunks around the edges. Including one great photo of the spudger picking pieces of the glass off the camera. The “parts required” should probably include a new screen at minimum!

Can someone post a *successful* procedure & photos, for opening this without damaging the screen?

Also, “following the instructions in reverse” is clearly not adequate for putting the screen back on - this was obviously Not done with this guide’s broken screen. Are there adhesive strips we can buy, or Acetone/Iso clean & new glue to apply to reattach the screen?

I would love to know from anyone that has actually done this with success! (20 people have apparently followed this procedure?)

Demis John -

Just did this for a client. The glass is unbelievably thin and the adhesive and crazy strong. I made sure to get a written “OK” from him that I would most likely be destroying the screen in the process. He was fine with it as he just needed the data, but I don’t know if it is possible to do this without actually damaging the screen.

If you manage to get the screen off without cracking it, kudos to you, but I would bet that you are also going to have some heat damage just because of how strong the adhesive is. If you look at the photos in step 3 and 4 you can see screen damage from the heat gun near the top-right. Those are now dead pixels.

Chris Ibold -

Hello,

My screen has tow yellow spots, looks more like a yellow line on the left side of display (and a broken hdd) so I have to open it… :/

is it possible to fix the yellow line without to buy a new screen ?

Thanks and best regards

Fritz -

I know there are probably not many of these still around that people are fixing…but my Surface has been a reliable device since I bought it until a few days ago it wouldn’t power on. I tried every possible way to revive it but sadly nothing worked. I only needed the SSD from the device so I was less concerned about the display. I had a heat gun and you must have some type of suction device to increase your chances of getting the screen off without damage. Also - be careful - too much heat and the case around the display will start to warp and melt. I successfully got the device apart and removed the SSD, but the display is broken beyond repair. I didn’t have the picks shown in the guide so I used old gift cards to keep the display apart as I worked around. That worked well. Thanks for putting this guide together.

David Jacobs -
