Microsoft Surface Pro Akku austauschen

Geschrieben von: Jonathan Choi
  • Kommentare: 37
Microsoft Surface Pro Akku austauschen

Schwierigkeitsgrad

Sehr schwierig

Schritte

12

Zeitaufwand

1 - 2 Stunden

Einleitung

Nutze diese Anleitung, um den Akku im Microsoft Surface Pro zu ersetzen.

  1. PQRaw1JYQHcXPT3o

    • Lege einen erwärmten iOpener auf die Ränder des Displays, um den Kleber darunter aufzuweichen. Du kannst auch ein Heißluftgebläse benutzen.

    • Wenn du den iOpener verwendest, musst du ihn wahrscheinlich mehrfach erwärmen und auflegen. Lasse den iOpener jedesmal mindestens eine Minute lang zum Aufweichen des Klebers auf dem Display liegen, bevor du ihn nochmals erwärmst.

    Be patient. I spent at least 10 to 15 minutes warming and trying to pry up the screen with my spudgers and such. It got so hot I would use one spudger to hold the Surface from the opposite side while pried with the other spudger from the other side. I would get a little lip up and slide and when I felt resistance then I would heat more and make my way around the screen. I continued that many times until I was able to use the suction cup to pull it up.

    Dan -

  2. EOHRkJ6QFxp3uiIP
    EOHRkJ6QFxp3uiIP
    BXPWniVZPXxcTncM

    • Bringe einen Saugheber so nahe wie möglich an der Displaykante an.

    • Ziehe am Saugheber, um die Kante des Displays soweit anzuheben, dass du ein Plektrum darunter einsetzen kannst.

    • Schiebe das Plektrum unter allen Kanten des Displays entlang, um den Kleber auf der Blende aufzutrennen.

    • Setze das Plektrum nicht tiefer als die Blende ein, du riskierst es sonst, das Display dauerhaft zu beschädigen.

    • Arbeite bei diesem Schritt sehr langsam und sorgfältig. Das Display ist empfindlich und bricht leicht, wenn zuviel Druck ausgeübt wird. Wenn dein Werkzeug festzustecken scheint, dann erwärme das Display nochmals, damit der Kleber wieder weich wird.

  3. 2UrRBYvTW4QOb5Hg
    2UrRBYvTW4QOb5Hg
    klYqJPJEuhcaOIsr

    • Beginne an der Oberkante das Display leicht anzuheben. Wenn du Widerstand bemerkst, dann erwärme das Display erneut und trenne mit dem Plektrum den restlichen Kleber auf.

    • Bevor du das Display ganz entfernst, musst du erst die drei Displaykabel ablösen.

    【注意!!】 画面ガラスの下部の接着がデジタイザーのフレキケーブルとも接着されています。

    両面接着剤の温めが甘かったり、無理に剥がそうとするとデジタイザーのフレキケーブルが切れますので丁寧に作業を行って下さい。

    Tacky Sato -

    my surface pro 1 has 4 flat flexi-cables connected.

    I don’t know how to put back the narrow flexi cable. It is too thin and without a pulling tape?

    Kenneth Siu -

  4. qXyDDSIUyJjkrIpV

    • Entferne das Display.

  5. SHDqlEDmysWGwlhD
    SHDqlEDmysWGwlhD
    HyGOfRXhUdthHtOJ

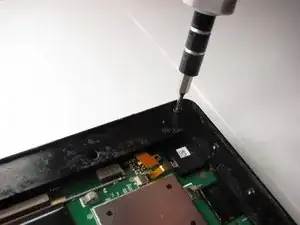

    • Entferne 23 Torx T3 Schrauben von der Bildschirmblende des Surface Pro.

    My Surface Pro 1 needs a T4 screwdriver for these screws.

    Sheryl -

    Mine used T3s.

    Dan -

  6. cXySQytDQXOSAMZG

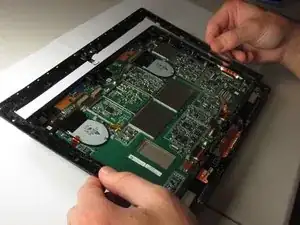

    • Hebe die Bildschirmblende vom Surface Pro ab.

  7. fLh1LuLRtEGPnCq4
    fLh1LuLRtEGPnCq4
    HYlZ5SFNuEAsJ4Kx

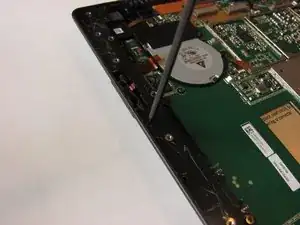

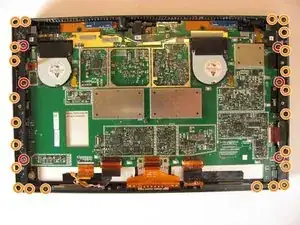

    • Entferne die sechs Torx T5 Schrauben von den Leisten auf beiden Seiten des Rahmens.

    • Entferne 23 Torx T2 Schrauben von den Leisten.

    On my Surface Pro 1, the screws labeled as T5 are T3.

    Sheryl -

  8. ZAuBv4YDTXJfonF5

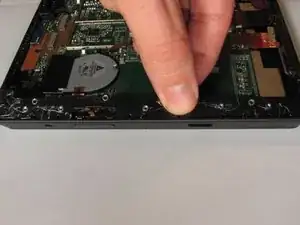

    • Hebe beide Metallleisten aus dem Rahmen heraus.

  9. 3dBtKYaIQtOIQeKy
    3dBtKYaIQtOIQeKy
    OddFm5vvmP1kI6JH

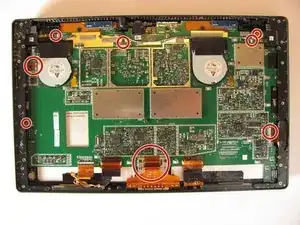

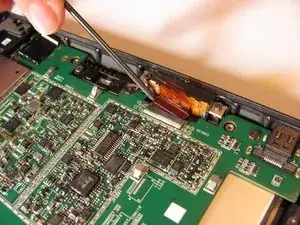

    • Ziehe vorsichtig mit einer Pinzette die acht orangefarbenen Flachbandkabel aus ihren Anschlüssen heraus.

    There’s an additional black ribbon cable (top center in picture) that needs to be unplugged. Also, open the release for the cables before trying to pull them out.

    Sheryl -

  10. 2m6B4STyb4A6Yrle
    2m6B4STyb4A6Yrle
    5QjkuAndAKfIcTKb

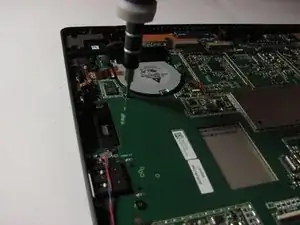

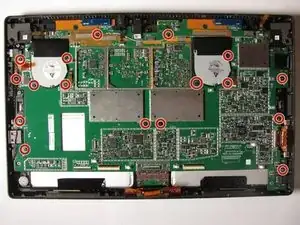

    • Drehe 17 Torx T5 Schrauben auf der Hauptplatine heraus.

    There’s an 18th screw that needs to be removed. It’s in the upper right corner of the picture, but not circled.

    Sheryl -

    The 6 screws holding the fans in place should not be removed (3 on each side - heads look different). They just attach the fans to the motherboard.

    Sheryl -

    One of these screws is thinner than the others, which I didn’t notice until I started screwing them back in.

    Sheryl -

  11. VCx6KSwFdPASmekT

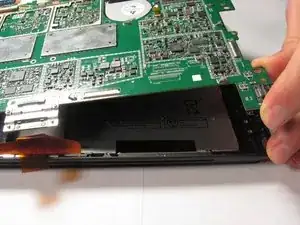

    • Nachdem die Schrauben entfernt sind, kannst du das Logic Board vorsichtig mit der Hand hochheben und herausziehen.

  12. vehwGJgQM4fE2NVw
    vehwGJgQM4fE2NVw
    wAq3OAKLhiSHdONa

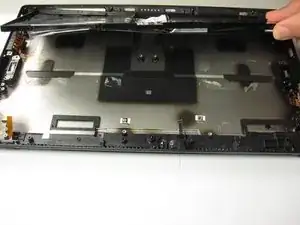

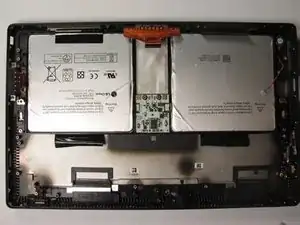

    • Fasse den Akkupack mit den Händen fest an. Löse ihn dann mit recht viel Kraft aus der Klebeverbindung heraus.

    This is possible to do. The worst part are all the tiny screws and glue to get the cover and touch screen off. I bought the battery for $45 off of Ebay and a set of four Torx screw drivers for $5.

    Tips:

    check the 12V coming into the main board after the cover is off. You will see a red boot light on the main board flash for a sec. You should hear the tiny fans going.

    Use an external monitor and cables to check the per and boot before putting it all back together.

    Sal V -

    I wonder how many could serviced in one day 4 ? We just been asked to service on a regular basis, finding some information on this thanks for the service breakdown..

    Pete -

    I am looking to get mine repaired and I am terrified to do it myself. Do y’all know somewhere I can send it.

    Payton Mitchell -

Abschluss

Um dein Gerät wieder zusammen zu bauen, befolge die Anleitung in umgekehrter Reihenfolge.

Tinte & Feder

Jonathan Choi

Mitglied seit: 09/10/13

936 Reputation

24 Kommentare

Thank you for that awesome guide!

Do you know where can i buy a battery for surface pro 2??

Thanks

John john -

I am also trying to find out where to acquire the Surface Pro batteries...???

Tristan Irons -

im also looking for a surface pro replacement battery.

Lekan Adesanya -

I just bought one for $70 at a site called newpower99.com... should be here in 2 days. I have no idea if it will work, but it says it comes with a toolkit to replace it. I hope it works.

Matt -

Did you have success installing the Newegg battery?

asmac -

sorry, make that newpower99

asmac -

I guess we can assume the people who tired using the aftermarket batteries were killed in the process of repairing their Surface Pro. May their valiant efforts be remembered for all the days.

pocketdrummer -

I completed this repair.

Notes:

The battery from newpower99 is the correct battery. It does not, however, come with the correct screwdrivers to complete the repair. (I believe they sent a T3, T4, and T5 torx when the repair requires a T2, T3, and T5).

The screen removal is the most difficult part of the repair. In addition to the cables on the bottom of the unit as other repairs have mentioned, the screen assembly itself is very vulnerable to being punctured. In places on the screen assembly, there is only a thin layer of tape sealing the gap between what looks like the LCD/Digitizer and the glass panel.

When you are prying the screen off, be very careful about how deep you go, as puncturing the seal can brick your screen (my screen fell victim to it).

To that end, pay very close attention to the bezel width. It is a different width on every edge. The left side is approximately the same width as the bezel on the glass, the right side is a mm or two skinnier, top is skinnier still and the bot is small.

Scalar -

Continued:

Once the screen assembly is off, the repair is not bad. My unit is a surface Pro 2, so there were a few different screw placements, but it's almost the same.

The screws are incredibly obnoxious. Not only do they require three different screwdrivers, there are many multiple widths and lengths within a screw type. Screw organization is a must.

The adhesive is a big problem as well. The tape holding together my battery assembly looks like it bled some adhesive, which cause my logic board to stick to the battery. A precarious few minutes later, I was able to put enough pressure to pull the board without flexing it too much. The battery is basically welded to the back panel with tape and adhesive. It took all my strength to tear it off the back panel.

If you are reading this and looking to complete this repair, do yourself a favor and order a replacement screen assembly ahead of time. They are approximately $60 now, and there is a good chance of the screen not surviving disassembly.

Scalar -

The Microsoft part number for the OEM Surface Pro 1 Model 1514 battery is P21GU9. The Surface Pro 2 Model 1601 uses the same battery. If you search on eBay for “battery P21GU9”, you’ll find a lot of them - all from Chinese sellers. I just bought one that’s theoretically OEM and brand new (unused) for $35. The seller has a high rating, so hopefully it’s true.

Sheryl -

how do i glue the new battery back in place?

Franz Hofmann -

You glue it back in with double-sided tape. You can get it on Amazon, but most batteries meant to be glued in come with the tape already on it. When my new battery gets here, I’m not going to glue it in as completely as it was. Seems like overkill, and it’s too hard to remove.

Sheryl -

I just removed the battery from my Surface Pro 1. I don’t have the new battery yet. If I try to plug it in with no battery, will I destroy it?

Sheryl -

Well, I had to try it. I plugged it in and turned it on (with no battery) and it worked! So I’m going to screw everything down and just run it this way. I don’t really need the battery (though I ordered it).

Sheryl -

Any chance anyone who’s done this replacement is still following this page? My Surface Pro 2 battery has started to majorly crap out, so I think I’m going to grab a battery here and give this a try. I have definitely not been happy with the build quality of my Surface, in fact, the adhesive at the bottom and 90% of each side has failed more than 6 months ago, so I’m thinking it should be much easier for me to remove the screen. I’ll mainly just need to deal with the top edge of the device.

My question is how to re-”glue” the screen once you take it off? Is that possible? I saw someone mention double sided tape to use to attach the new battery, but would you use the same thing for the screen? Hoping someone can help offer insight from experience. Thanks!

Robert Higgs -

@rchmx To reinstall the screen, remove all the old adhesive and clean the mating surface with >90% isopropyl alcohol, and then secure it with a strong/thin double-sided tape, such as Tesa 61395. This repair is not for the faint of heart. Good luck!

Jeff Suovanen -

@jeffsu Thanks Jeff! Yes, I had found that after doing a bit more searching. The battery in my SP2 is now completely non-functional, but luckily a while back it had bloated to the point where 70+% of the screen has been detached for the casing, so hopefully that will make the process a bit easier. And anyways, it’s necessary to return the device to a more than basically functional level, so I have no choice but to dig in after the holidays are over.

Robert Higgs -

you might be able to find one on Newegg

George Sherman -

What type of glue do you use to re-seal the system?

Tyler Hardy -

? Wish me luck ! I’m going to try it. Thank You All, for your contributions . Microsoft valued my Surface at $7.50

exchange. I’ve got nothing to loose.

Ted Nielsen -

warning: this is not the surface pro 5, because when MS anounced the pro 5 they anounced it as the Surface Pro. I learned it the hard way and now i need a new display, because the edge (where the glue ist) is thinner at the pro 5. In total, it will take you arround 40 screws for the pro 5 to change the battery. way less than here

Flavio Ried -

hellow me surface pro 4 battery dead and i want to change it . but iam from iran and microsoft doesnt any branch in country and i confused . but finally i find nozhino microsoft surface repair clinic in google and they change my surface battery with best performance thanks for nozhino

kimi -

Replaced the battery and although it charges the surface wont run off battery at all.

Farrell Segall -

Which battery did you buy?

iluecker -
