Einleitung

This guide will display the step-by-step process of fixing and/or replacing a faulty antenna. Soldering may be involved, so be prepared!

  1. fssrIcEkMNImetnn
    fssrIcEkMNImetnn
    GsMWZ6rP2ExA23RX
    • First, apply pressure with your thumb on the top of the battery cover.

    • Next, pull down on the cover until it begins to slide.

    What is the radius of these CBS

    Boyd Ratley -

  2. yvpujB5aaniwenxg
    • Finally, once the cover is completely off, pry up the old batteries with your finger or a strong, skinny tool (i.e. spudger).

  3. LVxuaFPBctbCV4MG
    • Unscrew the six 8.0 millimeter long, #0 screws on the backside of the case using the Phillips #0 screwdriver.

  4. 35WIBLaJYeTwMymn
    • Detach back part of the case by gently lifting up.

  5. AWJ64ZakUM4KqVvX
    • Carefully and slowly lift the motherboard away from the front case. The motherboard will be attached to the speaker, which is firmly glued onto the front case.

  6. n1yWAN2j5UQiKKM3
    • Check the connection of the antenna with your eyes and fingers. The connection should be firm and smooth where it was soldered.

    • Ensure that the spring of the antenna isn't crooked or damaged by rubbing your fingers along the length of the spring.

    • Desolder the connection of the antenna to the motherboard. Careful!, if used improperly, the soldering tool can damage the circuit board!

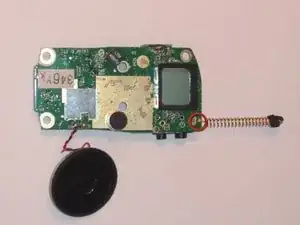

  7. jxAs4SFT5rpoxcjq
    • After obtaining a new or undamaged spring, solder it back onto the circuit board. Again, this is a delacate process as the soldering tool will be hot!

Abschluss

To reassemble your device, follow these instructions in reverse order.
