Einleitung

Looks as though some experience with a soldering tool may be necessary, so make sure to be safe with these steps!

  1. fssrIcEkMNImetnn
    fssrIcEkMNImetnn
    GsMWZ6rP2ExA23RX
    • First, apply pressure with your thumb on the top of the battery cover.

    • Next, pull down on the cover until it begins to slide.

    What is the radius of these CBS

    Boyd Ratley -

  2. yvpujB5aaniwenxg
    • Finally, once the cover is completely off, pry up the old batteries with your finger or a strong, skinny tool (i.e. spudger).

  3. LVxuaFPBctbCV4MG
    • Unscrew the six 8.0 millimeter long, #0 screws on the backside of the case using the Phillips #0 screwdriver.

  4. 35WIBLaJYeTwMymn
    • Detach back part of the case by gently lifting up.

  5. nnYNU6epMOVAWjuE
    • Remove the circuit board from the front part of the radio case.

    • Clip the red and black connecting wires at the base closest to the circuit bored in the spots denoted by the two red circles.

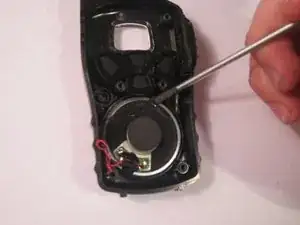

  6. NiOvxlL6JdcOrXKx
    • Scrape off the glue on the outer lining of the speaker using the metal spudger.

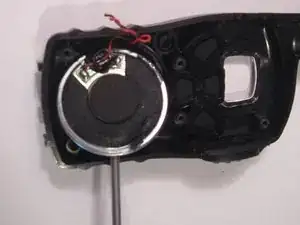

  7. IPGbvZpVRUAoGe3Y
    • Pry the speaker from the case using the metal spudger.

    • This should not take excessive force, so make sure all remaining glue is scraped off from the edges if it will not easily come out.

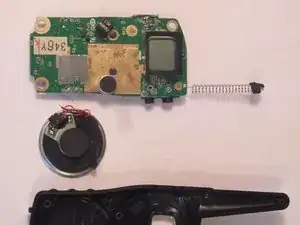

  8. vBVsOCMLNnLUwT44
    • The speaker is now disassembled!

  9. JFbHeJ1nKSIyGdO1
    • Solder the new wires to the circuit board in the spots denoted by the two red circles.

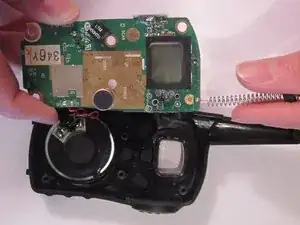

  10. awWGwSXwAMUNNEej
    • Place the speaker back inside the shell casing in the same way that it was originally placed.

    • Accurately use a polyurethane glue around the rim of the speaker to mount it firmly back inside the plastic casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
