Milton Bradley Simon Light Bulb Replacement

Geschrieben von: Simon Redondo

Kommentare: 1

Milton Bradley Simon Light Bulb Replacement

Schwierigkeitsgrad

Very easy

Schritte

Zeitaufwand

5 - 8 Minuten

Einleitung

This guide will show you how to change the individual light bulbs from the Simon game. The repair is fairly simple and only requires the use of a Phillips head screwdriver.

Werkzeuge

Phillips #1 Screwdriver

Schritt 1

Make sure the game is powered off by switching the On/Off switch to the left.

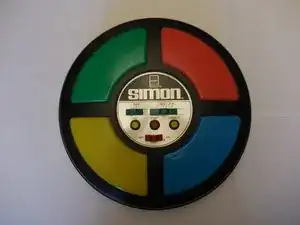

Schritt 2

Take off the green and red switches on top of the game by pulling them off.

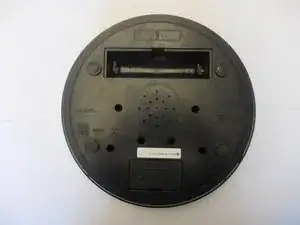

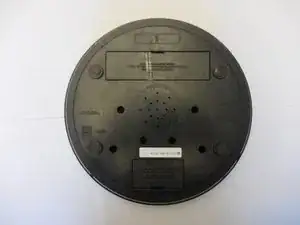

Schritt 3

Flip the game over.

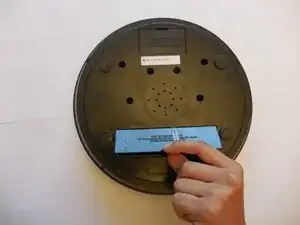

Schritt 4

Slide the battery cover off of the back.

Schritt 5

Take out the batteries.

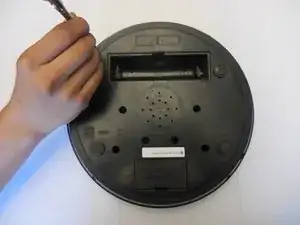

Schritt 6

Use the Phillips Head screwdriver to unscrew the screws located at the four corners of the game.

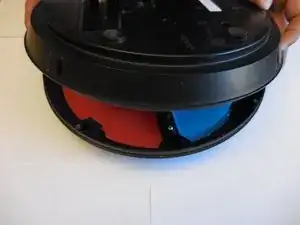

Schritt 7

Pull off the back plastic case of the game.

Schritt 8

Carefully place the top half of the game aside.
The top half is the half with the colored panels. Carefully place this half aside so the buttons do not fall out of place.
