Is your Angle Grinder’s trigger not working? If so, here is the guide to fix the problem with a simple change of a trigger assembly. The trigger assembly is the one of the main components for the grinder. Basically, a squeeze of the trigger turns on the electric motor inside thus making the tool run. Without a fully functioning trigger, the machine would not be able to turn on. All you need to make the repair is a Torx T20 and a Torx T10 screwdriver to remove two different types of screws involved with this replacement.
-
-

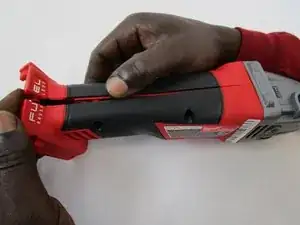

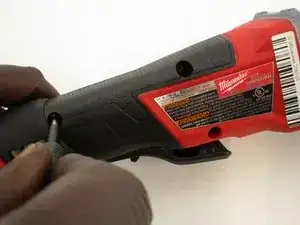

Using a Torx T20 screwdriver, unscrew the four 16mm screws from the case.
-

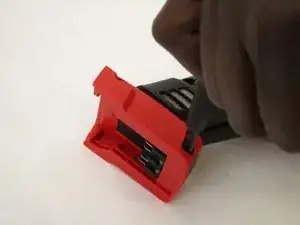

Switch to the Torx T10 screwdriver, and remove the last 16mm screw from the hilt.
-
-
-

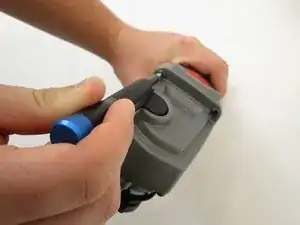

Using the Torx T20 screwdriver, unscrew the four 28mm screws located at the bottom (and top) of the gearcase assembly.
-

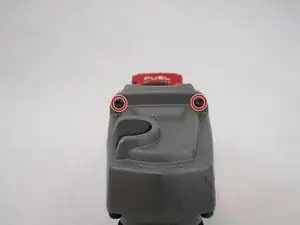

Remove the two 12mm screws with a Torx T20 screwdriver in order to get to the others.
-
-
-

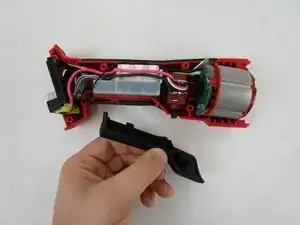

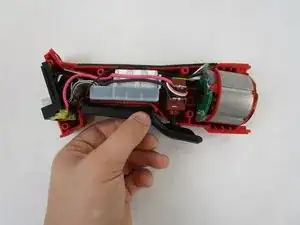

Lift the trigger assembly off of its mount.
-

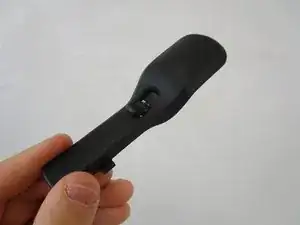

Dispose of the old trigger assembly and install the new one.
-
To reassemble your device, follow these instructions in reverse order.
