Milwaukee 5262-21 Diaphragm Assembly with Bushing Replacement

Geschrieben von: Payton Parker

Kommentare: 1

Milwaukee 5262-21 Diaphragm Assembly with Bushing Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 - 45 Minuten

Einleitung

This guide will show you how to replace the diaphragm assembly. A faulty diaphragm assembly can lead to a few different issues including irregular shaking, grinding, or leaking grease.

Werkzeuge

Ersatzteile

Milwaukee 5262-21 diaphragm assembly w/ bushing

Schritt 1

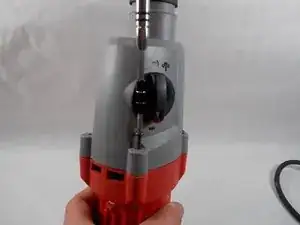

Remove the ten 19mm T20 Torx screws shown in red.

Schritt 2

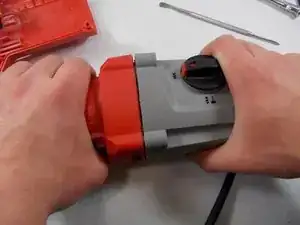

Remove the red Housing Assembly by lifting it up off of the tool.

Schritt 3

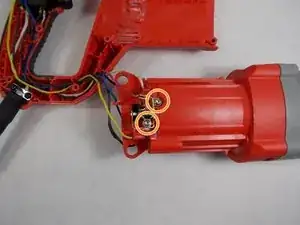

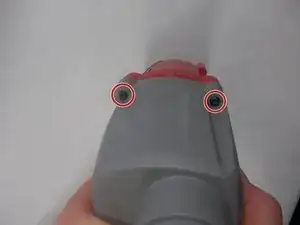

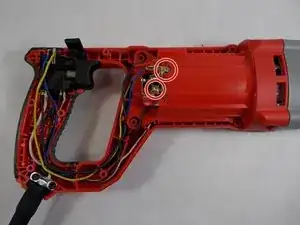

Remove the two 10mm T-10 Torx screws that attach the top brush holders to the motor housing.
Remove the two 10mm T-10 Torx screws that attach the bottom brush holders to the motor housing.

Schritt 4

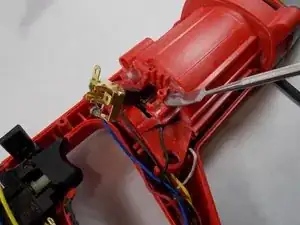

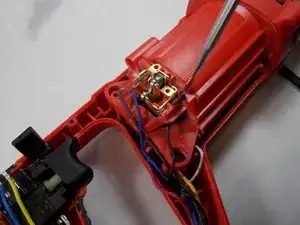

Using a metal spudger, pry off each brush holder.

Schritt 5

Remove the four 37mm T20 Torx screws shown in red.

Schritt 6

Pull the front portion of the tool out from the motor housing.

Schritt 7

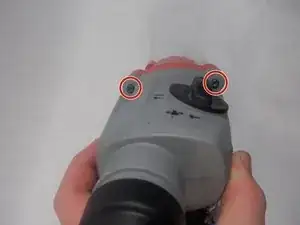

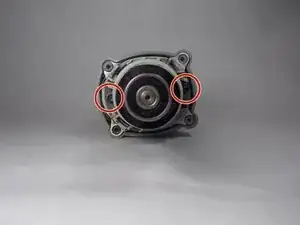

Remove the two 11.5mm T10 Torx screws shown in red.

Schritt 8

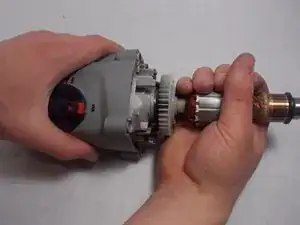

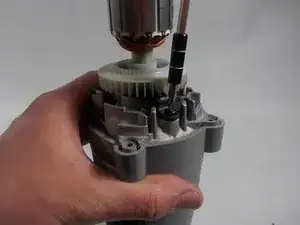

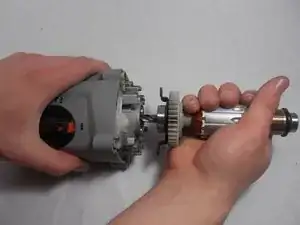

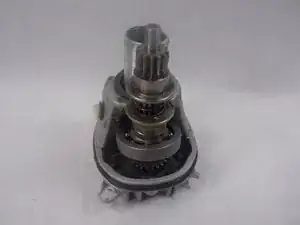

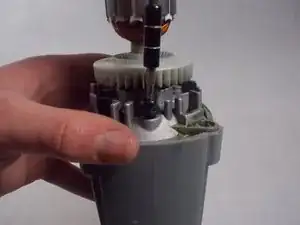

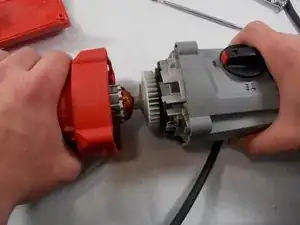

Pull the 120V armature assembly out of the diaphragm assembly.

Schritt 9

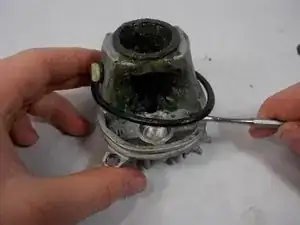

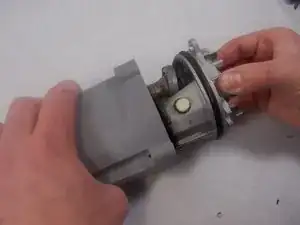

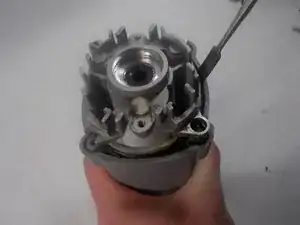

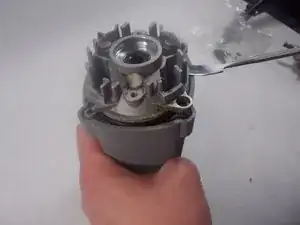

Using a metal spudger, pry the diaphgram assembly out of the gear case.

Schritt 10

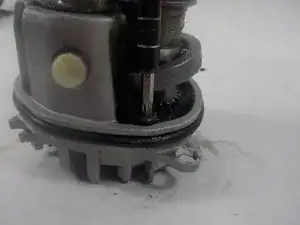

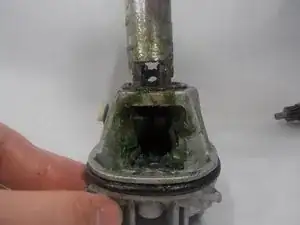

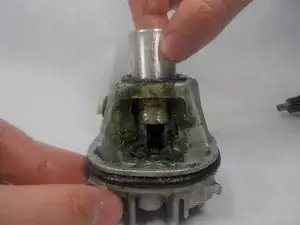

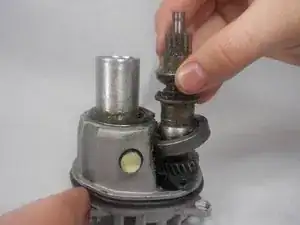

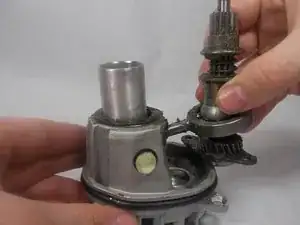

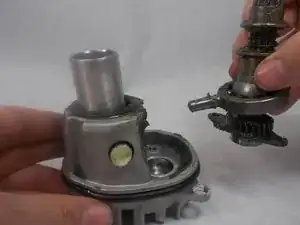

Now that you have loosened the diaphragm, you can now pull it out of the gear case.

Schritt 11

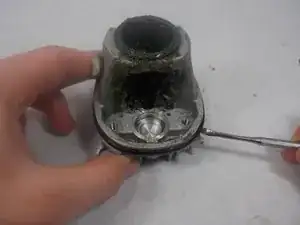

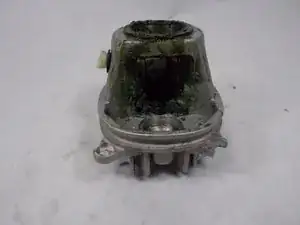

The diaphragm assembly will be lathered in grease. In order to move forward, you may want to give it a wipe down to remove any extra grease.

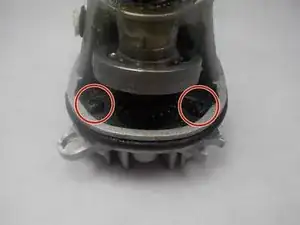

After removing some grease (if needed), remove the two 15mm T20 Torx screws shown in red.
