Milwaukee 5262-21 Housing Assembly Replacement

Geschrieben von: Adrien Andrade-Cain
  • Kommentare: 0
Milwaukee 5262-21 Housing Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

10 - 15 Minuten

Einleitung

Follow this guide to replace the Housing Assembly on your Milwaukee 5262-21 . You will be able to look at pictures, that will be useful in order to see which screws need to be removed.

  1. Kr524424uZfvaR4Z

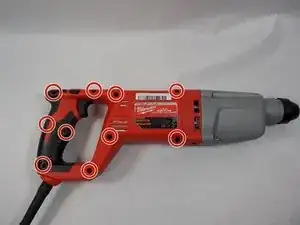

    • Remove the ten 19mm T20 Torx screws shown in red.

  2. iACqrCvcXcnOtAeP

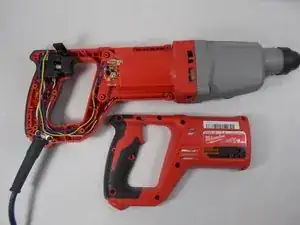

    • Remove the red Housing Assembly by lifting it up off of the tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
