Einleitung

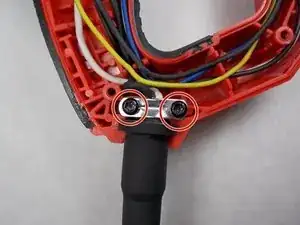

In this guide, we will be replacing a power cord that is not supplying power to your device. You will be replacing a power cord, that is typically common to become faulty on this device. You will be removing 4 bolts.
Werkzeuge
Ersatzteile
-
-

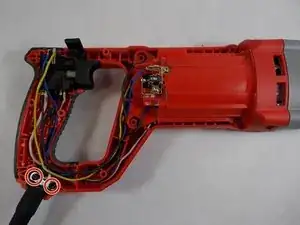

Follow the black and white cord to the trigger.
-

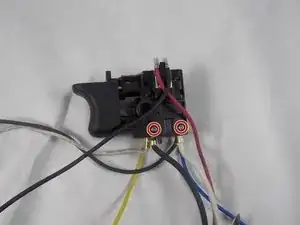

On the trigger there are two small bolts that you have to loosen.
-

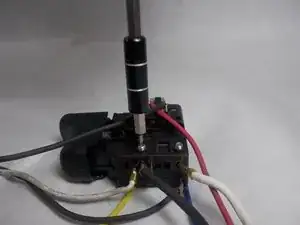

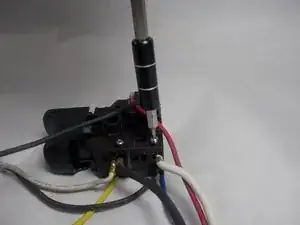

Loosen them slightly with a H - 1.5 bit.
-
-
-

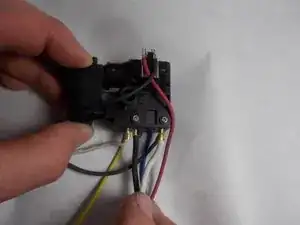

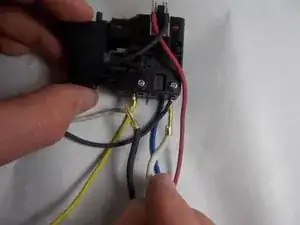

Once the bolts are loose you can pull both cords straight out from the trigger.
-

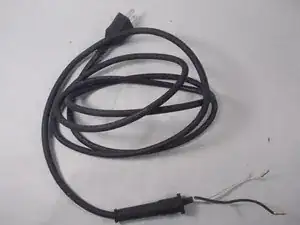

Pull the cable from the chassis and put it to the side and it has been successfully removed.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
