Milwaukee Hex Impact Driver 2656-20 Trigger Assembly Replacement

Geschrieben von: Troy Conrad
  • Kommentare: 0
Milwaukee Hex Impact Driver 2656-20 Trigger Assembly Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

This guide will demonstrate how to replace the Trigger Assembly on the Milwaukee Hex Impact Driver 2656-20. The First Two steps will cover disassembly of the drill. The only tool required for this repair is a T-10 Torx Screwdriver. The repair is considered Difficult in difficulty and will take approximately 20 minuets.

  1. DYBQTbUXsupa11Nm
    DYBQTbUXsupa11Nm
    uxNjoOPLVOmkDK5V

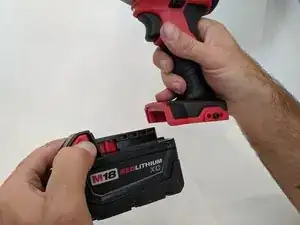

    • Squeeze the red buttons on the battery.

    • While squeezing the red buttons, slide the battery forward and out to remove it from the device.

  2. bXb1lSmGPD5SO4kO
    bXb1lSmGPD5SO4kO
    NVvMUxslv5yInAXk

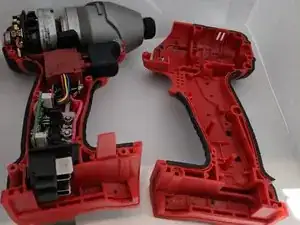

    • Lay the impact driver on its side.

    • Remove eight 16 mm and a single 19 mm screws using the T10 Torx Screwdriver.

    • Separate the two halves by pulling up on the top half.

    • Make sure that the half with the screw heads Is facing up during this process. This will ensure that the components do not fall out.

    • Lay the top half to the side.

  3. UUETSJMywQgH4Z1r
    UUETSJMywQgH4Z1r
    oQytPEduuh2qadWg

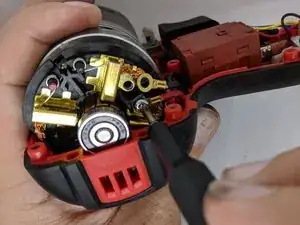

    • Remove the two 6 mm screws on the back of the brush card assembly using the T10 Torx screwdriver.

    • Move the two wires out of the way.

  4. PnGEZCU2fjuOQP5g
    PnGEZCU2fjuOQP5g
    oPvcVUHnLZZOV2Su

    • Gently pull up on the trigger assembly to remove it from the case.

  5. lXD3cqrftbVQhySJ

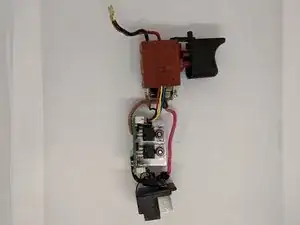

    • Remove the trigger assembly from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
