Einleitung
The following repair guide shows how to remove and replace the Milwaukee Hex Impact Driver 2750-20 driver head in an easy and effective manner.
Werkzeuge
-
-
Remove the five T9 15.5 mm screws.
-
Remove the single T9 19.5mm screw.
-
Remove the two T9 37mm screws.
-
-
-

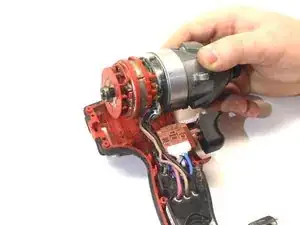

Lift the driver head and motor assembly directly out of the outer casing.
-

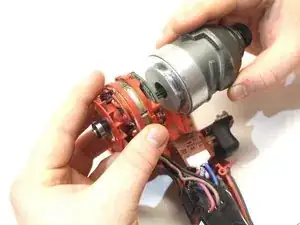

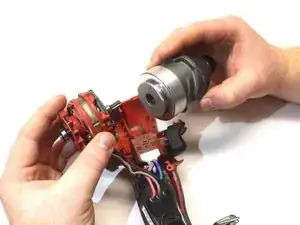

Pull the driver head away from the motor assembly, separating the two.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
