Milwaukee Hole Hawg 1675-1 Switch Replacement

Geschrieben von: Rufus Bailey
  • Kommentare: 1
Milwaukee Hole Hawg 1675-1 Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

15 Minuten

Einleitung

Has your Milwaukee Hole Hawg stopped responding when you squeeze the trigger? If so, it could be a faulty switch and in need of replacement. Take a look at the Milwaukee Hole Hawg 1675-1 Troubleshooting Page. The switch makes a connection when depressed that supplies power to the motor for use. Over time connectors inside the switch can fail or the switch housing can break. All you will need for this repair is a T27 and T15 Torx bit along with a #0 flathead screwdriver.

  1. ty132VEo2LJYi4K5

    • Ensure that the drill is unplugged.

    • Position the drill so that it is on its side.

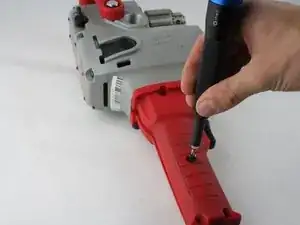

  2. FWmMktIj1fHJYymF
    FWmMktIj1fHJYymF
    J2kbMHmRCMtwlnxI

    • Remove the four 19mm Torx T15 screws.

    • Remove the two 25mm Torx T27 screw.

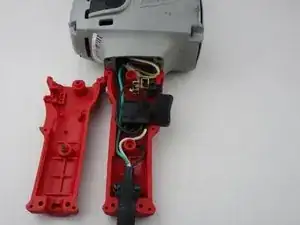

  3. pteRH2X3OVyZlEqp
    pteRH2X3OVyZlEqp
    KPxQqHcEe5Do4xSX
    NY5cKGIcaOSwQrLQ

    • Remove the top portion of the handle.

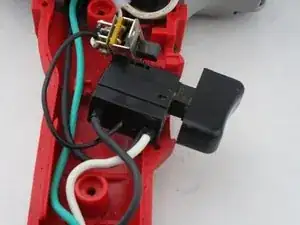

    • Pay special attention to where each wire connects.

    • Lift up on the switch and disconnect the wires.

    • Use a #0 flathead screwdriver to release tension on the wires.

    How do you get the small black wire back in the one in the middle of the switch

    remmod11 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
