Einleitung
If the motor on the tool spins slowly or not at all the motor field winding may need replacement. To ensure that the field winding is problem first ensure that the device is receiving power and that the brushes are in good condition.
Werkzeuge
Ersatzteile
-
-

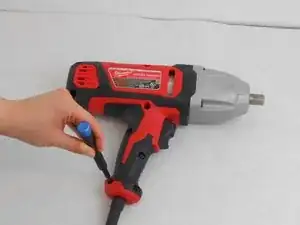

Flip the device and remove four 18mm screws using a T20 Torx screwdriver.
-

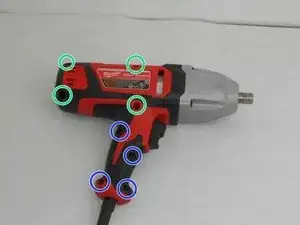

Remove four 14mm screws using a T20 Torx screwdriver.
-
-
-

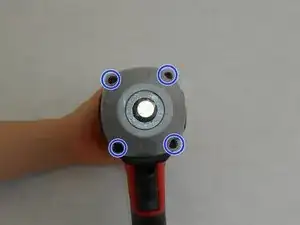

Remove the four screws on each corner of the gear box assembly using a T-20 Screwdriver.
-

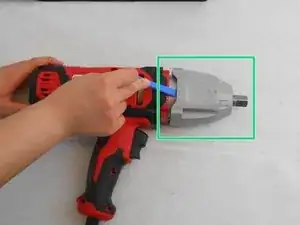

Use a plastic opening tool, slide out the gear box assembly away from the main body.
-
-
-

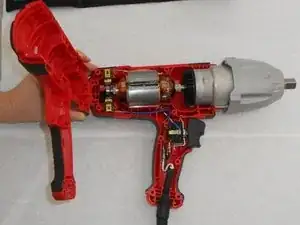

Separate the top half of the clam shell from the tool.
-

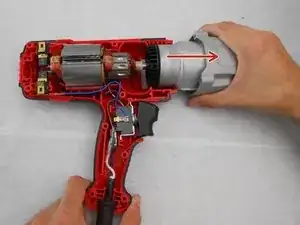

Remove the gearbox assembly by sliding it forward and set it aside.
-
-
-

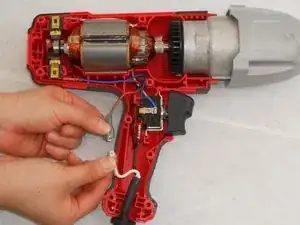

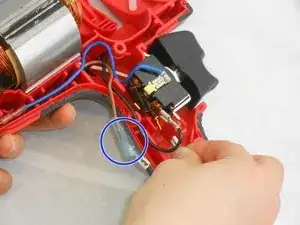

Disconnect the black AC wire from the brown field wire.
-

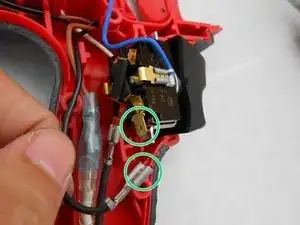

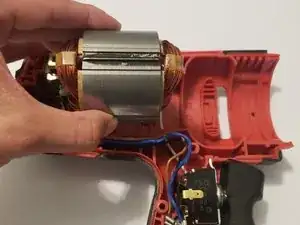

Disconnect the black field wire from the switch.
-
To reassemble your device, follow these instructions in reverse order.
