Milwaukee M18 2606-20 Gearbox Replacement

Geschrieben von: Markus Eldridge

Kommentare: 1

Milwaukee M18 2606-20 Gearbox Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 - 40 Minuten

Einleitung

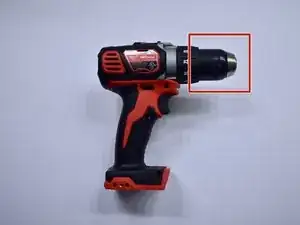

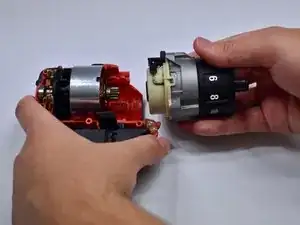

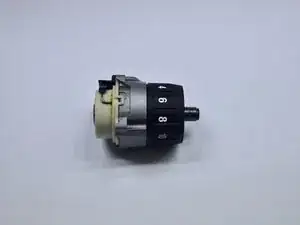

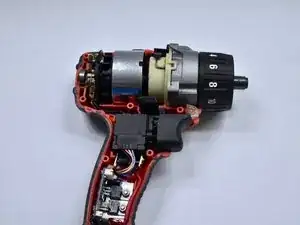

If you need to replace the gearbox on your Milwaukee M18 2606-20 cordless power drill (the drill slips and loses torque to turn anything) see this guide on how to remove it. The gearbox is what controls the speed and torque of the drill. Removing some of the parts could require a bit of strength so keep this in mind.

Werkzeuge

Schritt 1

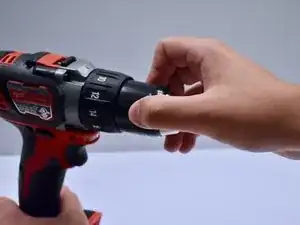

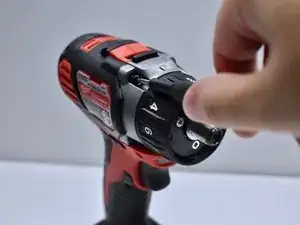

Rotate the chuck counterclockwise as far as possible to loosen from the base.

Schritt 2

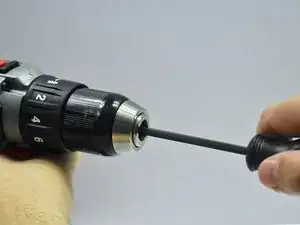

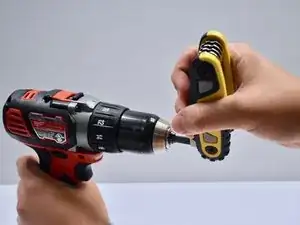

Remove the 28 mm inner screw holding the chuck onto the drill using a Phillips #3 screwdriver.
Rotate the screw clockwise to loosen it.

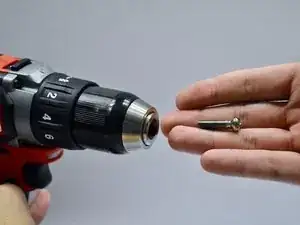

The inner chuck screw is reverse threaded which is why it needs to be rotated clockwise.

Schritt 3

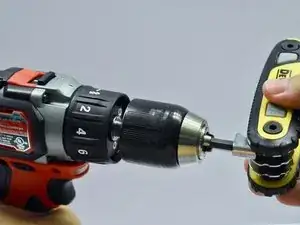

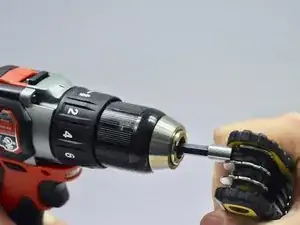

Insert an Allen wrench into the chuck and tighten the chuck onto the wrench.
The Allen wrench will be used for leverage when removing the chuck.
When the chuck is tightened it could make a clicking sound. This is fine and is not causing any harm to the drill.

Schritt 4

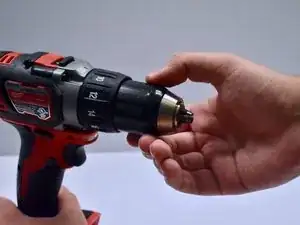

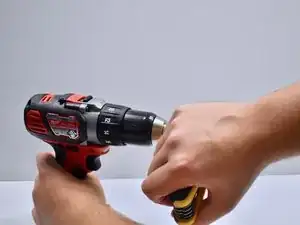

Rotate the Allen wrench counterclockwise to remove the chuck.

Schritt 5

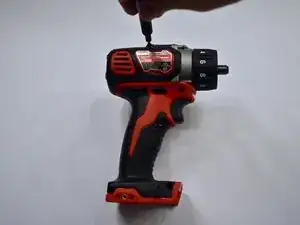

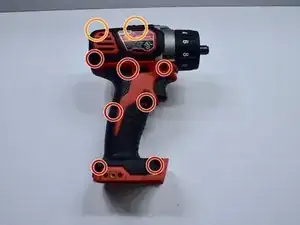

Using the T3 Torx screwdriver, remove the seven 18 mm screws from the handle area of the case.
Using the T3 Torx screwdriver, remove the two 21 mm screws from the top of the case.
