Milwaukee M18 2606-20 Motor Replacement

Geschrieben von: Markus Eldridge
  • Kommentare: 1
Milwaukee M18 2606-20 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 - 40 Minuten

Einleitung

If you need to replace the motor on your Milwaukee M18 cordless power drill (Model # 2606-20) see this guide on how to remove it. The motor is the powerhouse of the drill allowing it to complete its job. Replacing the motor may be necessary if the motor is making noise or losing speed during operation. Remember to be careful when removing items from the drill to avoid having to replace other items.

  1. m6Pjf2FZOowqKBhp
    m6Pjf2FZOowqKBhp
    HPQvdRsmZ3jsVYfH

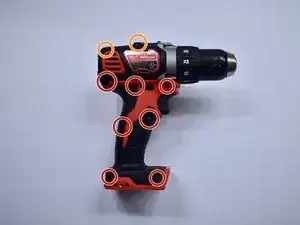

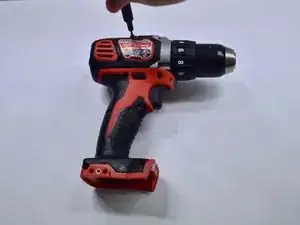

    • Remove the seven 18 mm screws, using the T3 Torx Screwdriver, from the handle area of the case.

    • Remove the seven 18 mm screws, using the T3 Torx Screwdriver, from the handle area of the case.

  2. K4uFkfyljfQqWZQP
    K4uFkfyljfQqWZQP
    1TeMryYJgIQWCYiJ
    VN5LPZ5rOaokTBDg

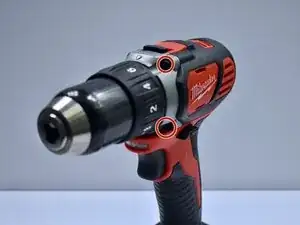

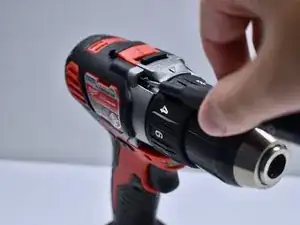

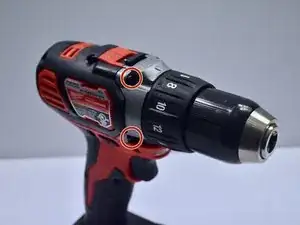

    • Remove the four 20 mm screws, using the T3 Torx Screwdriver, from the front of the case.

  3. U3D1AFdHZpJLKkRR
    U3D1AFdHZpJLKkRR
    3FrXMERGNsW2jANJ

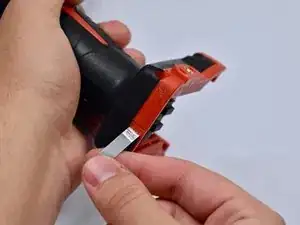

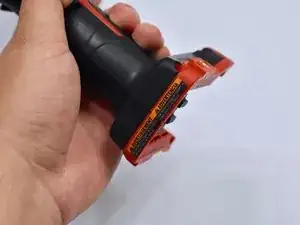

    • Peel back the sticker at the bottom of the drill handle.

  4. 3aK1wkAwCQXcIjVN
    3aK1wkAwCQXcIjVN
    wyV5tFV3PU5MGtcI

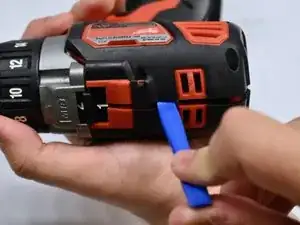

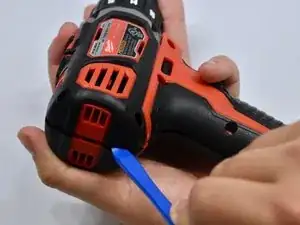

    • Open the case by sliding the opening tool all the way around the case to pry it apart.

  5. OEIaw1COwLEVD6IX
    OEIaw1COwLEVD6IX
    PK5ygm5MDReCHKaE

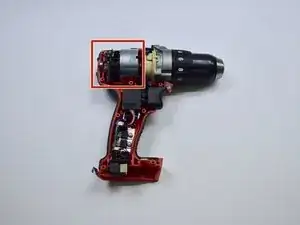

    • Lift the motor from the casing.

  6. WyYBCsXGffDvtJJH
    WyYBCsXGffDvtJJH
    AMM3fgNKhxLIG4tg
    AGUBcBO2j2K1ulld

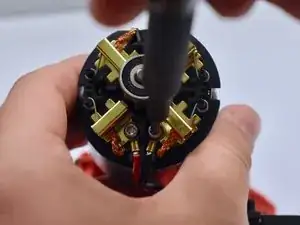

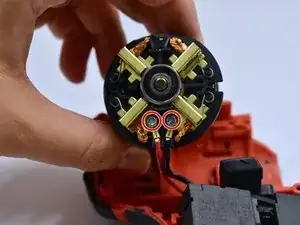

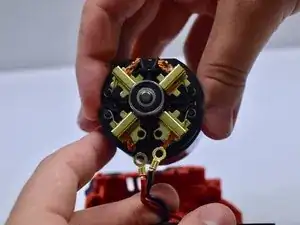

    • Remove the motor from the case and unscrew the two 8mm screws, using the T3 Torx Screwdriver, on the back of the motor.

    • Remove the connected wires.

    Where is the motor? I think you might want to add a specific step for removing the motor (and how to do it), with a top-down markup shot and action showing how to do that.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
