Minolta Maxxum STsi Back Clock Button Replacement

Geschrieben von: Jacobe Labog
  • Kommentare: 0
Minolta Maxxum STsi Back Clock Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to replace the back clock button for your Minolta Maxxum STsi.

  1. mTNFrnRRyAkTANAE

    • Open the back panel by firmly pressing up on the back-cover release on the lower right side of the camera.

  2. kGTZ4lgQDlZFMOqt
    kGTZ4lgQDlZFMOqt
    MBGYTDdxBlWLEaKp
    EHXBQbkFVttZvWAC

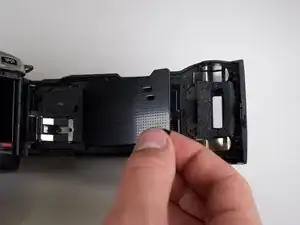

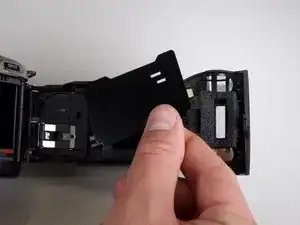

    • Remove the black case by gently lifting it with your fingers and rotating counterclockwise.

  3. DWhSsUusLUJEZixm
    DWhSsUusLUJEZixm
    r1AfgoNyptRhOhNo

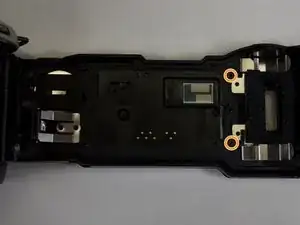

    • Remove the five black Phillips #00 2.5 mm screws from the back panel.

    • Also remove the two black Phillips #00 5.0 mm screws from the back panel.

  4. SuFfDN3nTfvOxtb5

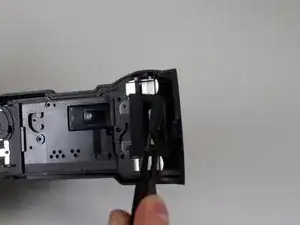

    • Use the tweezers to carefully peel back the adhesive foam connecting the back panel to the case and remove the panel.

  5. YHfP1XSAyITqxFDQ
    YHfP1XSAyITqxFDQ
    2lyhEZS1a1RJEP4S

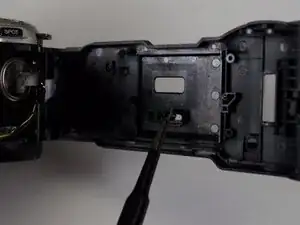

    • Use the tweezers to carefully peel off the rubber clock button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
