Minolta QTsi Maxxum Lens Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

Replace the back piece of glass so that your pictures will be clear of scratches and cracks.

  1. xMHcLKKLcecWK3RQ
    xMHcLKKLcecWK3RQ
    fGhXi6dxPj6wlbaU

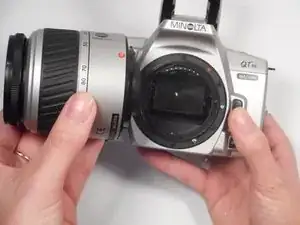

    • The lens release button is located on the right front side of the camera.

    • Remove the lens from the camera by pushing the lens release button.

  2. j4Sgvtl6ELL4EqsR

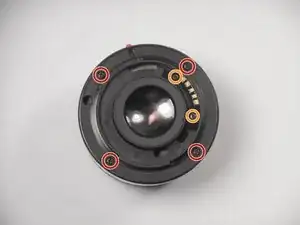

    • The detached module has multiple screws that must be removed in order to reach the lens.

    • Once detached, remove the (4) black Phillips #00 5mm screws from the outer rim of the module.

    • Next, remove the (2) remaining black Phillips #00 5mm screws.

  3. BxlLr1HByLCJVoPL
    BxlLr1HByLCJVoPL
    I6yvZm2PvIVvFpXm

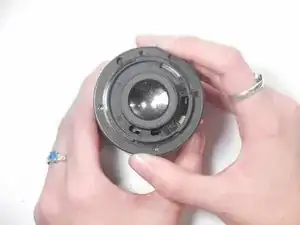

    • Once all screws have been removed, take the back piece off of the lens and replace it.

    • This piece should come off easily without using any tools.

    • There is film underneath the last 2 screws that are removed so be careful when taking it out because it could rip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
