Minolta QTsi Maxxum Shutter Button Replacement

Geschrieben von: Jordan Ellery
  • Kommentare: 0
Minolta QTsi Maxxum Shutter Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Replace your broken shutter release button so that you can take pictures with your camera.

  1. 3nyJUGOQ4LeBVYFc

    • Locate the battery compartment on the bottom panel of the camera.

    • Open the battery door by using a coin.

    • In the counterclockwise direction, twist the coin in the battery door groove to open it.

  2. sQTVUSFQT5m1XHns

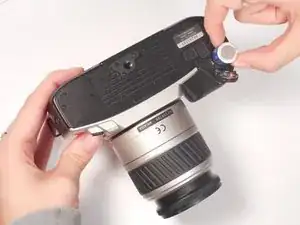

    • Two batteries are located inside the battery chamber.

    • Remove the two batteries from the battery chamber by picking them up.

  3. yu4rbCFTJ5cPigJe

    • There is a screw located underneath the batteries in the battery compartment.

    • Unscrew and remove the (1) black Phillips #00 5mm screw from the battery compartment.

    • Ensure good lighting before attempting to remove this screw because it is hard to see inside the compartment.

  4. TOOK4FavTVSERAm3

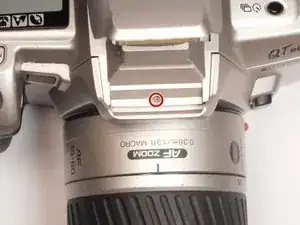

    • From underneath the flash assembly, remove the (1) black Phillips #00 5mm screw

    • Be careful because you can lose the screw

  5. iBkHFSmVGYZ12qno

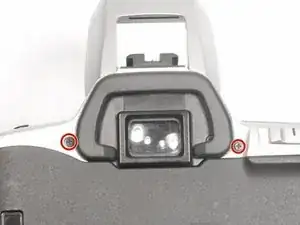

    • The only screws remaining that hold the top panel of the camera in place are located next to the view finder.

    • Remove the (2) black Phillips #00 5mm screws from both sides of the view finder.

    • Be careful because you can lose the screw

  6. UI3adyTZ1XeLxwas
    UI3adyTZ1XeLxwas
    1VnIWcUwDrysRQ31

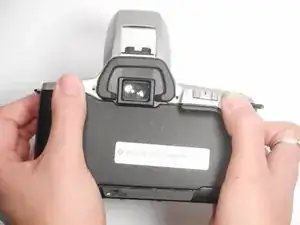

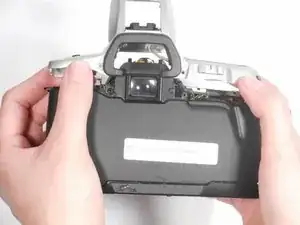

    • The top panel of the camera should now be easy to lift off. If it is not, make sure that all screws and attachments, listed in steps 1-5, have been removed.

    • Once all screws are removed, lift the top panel from the camera.

    • Be careful when removing the top panel because there are wires connected to it.

  7. HrICpqjGJRITgyuG

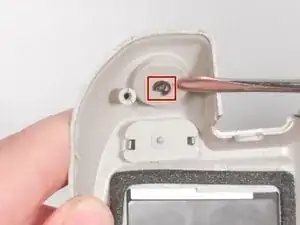

    • Use a metal spudger to push the button out of its socket so that you can place a new one in its place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
