Minolta X-700 Film Advance Lever Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

Minolta X-700 film cameras have a history of their film advance lever breaking. Without this feature, the camera will no longer work properly and it will just be a paperweight. This guide will provide a clear and easy way to fix this problem. Always make sure to remove the batteries to avoid any electrical problems when repairing electronics.

  1. hxNWMJWfJKRQnNnK
    hxNWMJWfJKRQnNnK
    2gxlaYSTQOXaTYSN
    WLxEAgd4TiPHX21i

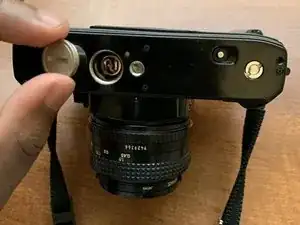

    • Using a Flathead screwdriver, remove the battery cap and then remove the battery.

    • Potential for device damage if you do not remove the battery prior to the repair.

  2. CAgrCWP11enmL3bS
    CAgrCWP11enmL3bS
    6UsG1CsllYgqXvLh
    wMESdpHuAEpmseQx

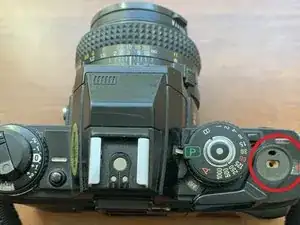

    • Using your hands unscrew the top of the film advance lever.

    • Afterward, you will be able to access the lever. Remove the lever by picking it up vertically.

  3. BeIgXPoXhWtUHyvD
    BeIgXPoXhWtUHyvD
    oYRMSuDr6rkgbEdU
    Xhf5OjAXCPyWPdKY

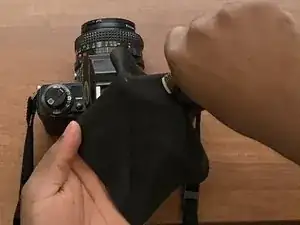

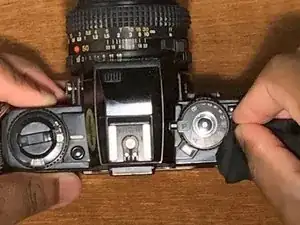

    • Using a microfiber wipe, clean the gears with gear oil.

    • After oiling, place a new lever and top back the camera.

  4. F64saWllYQDMclZR

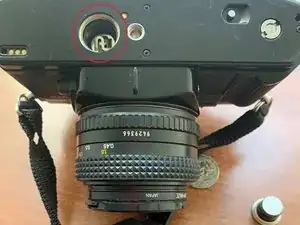

    • Replace the battery and battery cover.

  5. VVMI1XORwj2sdbyS
    VVMI1XORwj2sdbyS
    ORQHHRTwjAiCPdTf

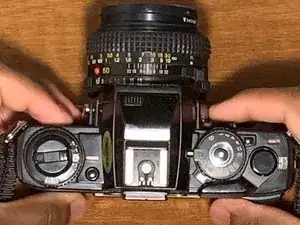

    • Test the lever.

Abschluss

To reassemble your device, follow these instructions in reverse order.
