Mio MiVue 698 Disassembly

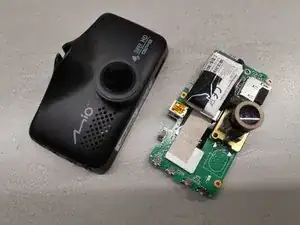

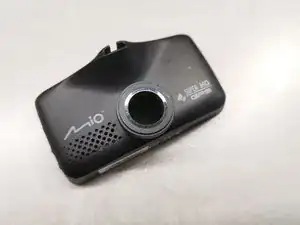

We will disassemble Mio MiVue 698 (Dual) car camera in this guide.

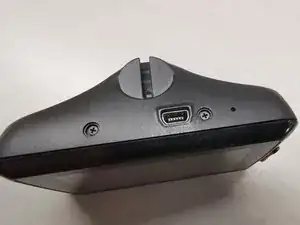

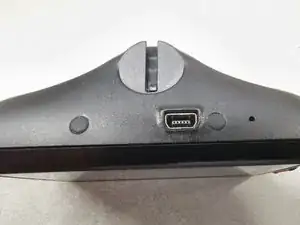

On the top of the unit, under the two caps, there are two Philips screws. Remove those caps and use Philips 0 screwdriver.

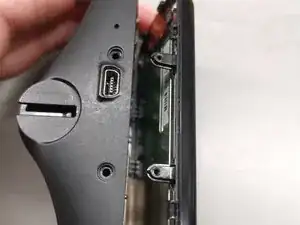

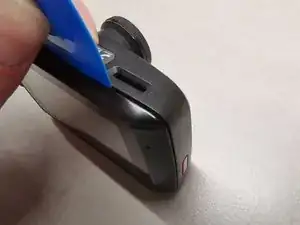

Now use a prying tool and gently pry all four sides of the display assembly.

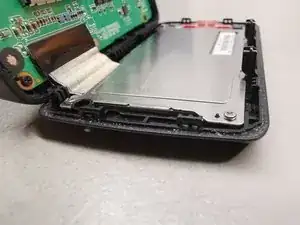

Be careful not to damage the wire strip on the bottom.

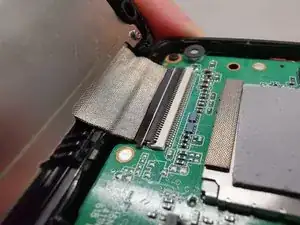

Remove black adhesive tape from the contacts.

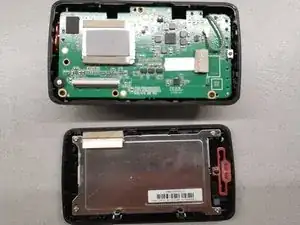

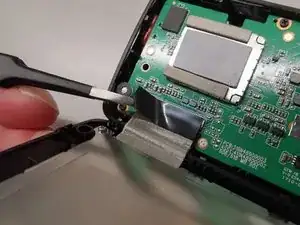

Use a plastic tweezers to gently unlock wire strip from the contacts. You will end up with a disconnected display assembly.

Disconnect the grey wire, which leads to GPS module.

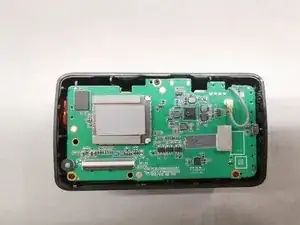

Remove three screws that hold the PCB.

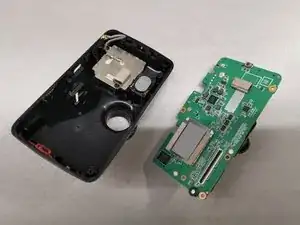

Remove the microSD card from the unit. Now you have to use a finger to carefully push against the lens from the front of the car camera, so the board will pop out.

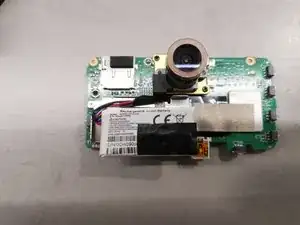

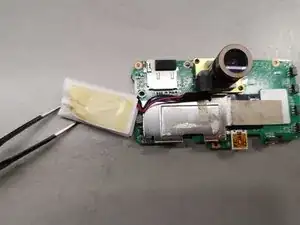

The battery is attached to the board with a small piece of tape.

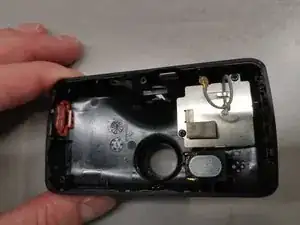

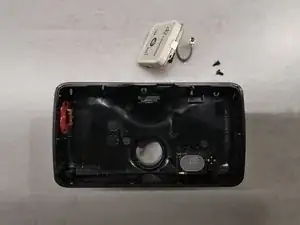

Remove two screws so you can remove the GPS module.
