Einleitung
-
-

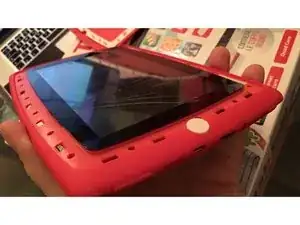

With the help of a thin tool, lift the white edge between the upper body of the device and the touchscreen marked by the green arrows.
-
-
-

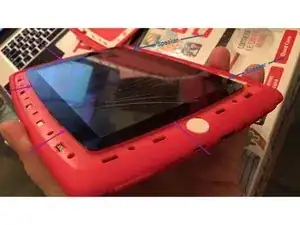

With the help of a thin tool, separate the upper body from the bottom, inserting the tool between the two parts marked by the green arrow.
-
Open the device.
-

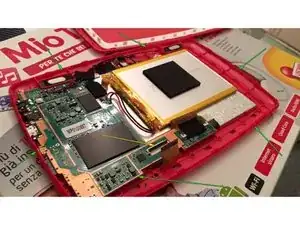

Remove the Scotch tape and disconnect the touchscreen connector by lifting the safety tab, located at the yellow arrow.
-
-
-
Use a heat source to help remove the double-sided tape.
-
Insert translation here
-
Insert translation here
-
To reassemble the device, follow the instructions in reverse order.
