Mk Diamond Wet Saws MK660 2010 Power Cord Replacement

Geschrieben von: Carsten Frauenheim
  • Kommentare: 0
Mk Diamond Wet Saws MK660 2010 Power Cord Replacement

Schwierigkeitsgrad

Moderate

Schritte

28

Zeitaufwand

Keine Schätzung

Einleitung

Follow this guide to remove and replace a faulty power cord in a Mk Diamond MK660 Wet Saw.

The replacement part is 153419.

Removing the motor before the power cord is not necessary, but makes the process easier.

  1. 1PxeDQYqBQ233hrw
    1PxeDQYqBQ233hrw
    IRyQRqTroDdkvOdI
    MdZQD1eHaLdr53Fb

    • Before you begin, make sure to power off and unplug the device from the outlet.

    • If the clear water pump hose is connected, remove it now.

    • Loosen the plastic knob holding the saw's cutting head in place.

    • Lower the cutting head while keeping it steady.

  2. tGXO5ZwpfDMQqleL
    tGXO5ZwpfDMQqleL
    nJuiajrrOlNUASWL

    • Unscrew the knob.

    • Remove it from the cutting head.

  3. qqmPylZjmBpUSer1
    qqmPylZjmBpUSer1
    D2vbW4t5NvitZ1r2

    • Loosen the plastic knob holding the blade cover in place.

  4. GeVKq3xu1LCI4Du2
    GeVKq3xu1LCI4Du2
    DbWeQbHwT1KeG1Ie
    2PiWwbLoYillPmVG

    • Loosen the wing nut on the blade cover pivot shaft.

    • Remove the wing nut and accompanying washer.

  5. fPx4CnQEso32iGJU
    fPx4CnQEso32iGJU
    IZZQ5RAsvjexgUmO

    • Pivot the blade cover up and pull it off the shaft.

  6. w41FMjgfuCUIBRpP
    w41FMjgfuCUIBRpP
    Dh4MCJUQIXSRK3RT
    NOvXH6sJbmxgWexv

    • Insert the provided spanner wrench into one of the four tightening holes on the inner flange behind the blade.

    • Use the the provided nut wrench to loosen the hex nut while providing counterforce with the spanner wrench.

  7. 1QIYZfoE4BmFgILE
    1QIYZfoE4BmFgILE
    Q1HRZtiQlkNXhHFs

    • Remove the hex nut.

    • Remove the outer flange.

  8. PSceQ2bcDGNsB2c2
    PSceQ2bcDGNsB2c2
    BdaSZvt3XVxDU1o2

    • Remove the cutting blade.

    • The blade can be sharp, so handle with care.

  9. cZmwpLxSYu1nrDEX
    cZmwpLxSYu1nrDEX
    1KVmSJCbG5yKvg3x
    G6JsIicNOl1dckgX

    • Pull the entire cutting head straight off the shaft holding it in place.

  10. xReqlPglgF5aDrRa

    • Remove the eight Phillips #2 screws on the underside of the cutting head.

  11. QitO1sed2Re1RGOy
    QitO1sed2Re1RGOy
    kIQHLVNWTyKKwWdo

    • Remove the bottom cover.

  12. 4ucxweSnBVqMiQKq
    4ucxweSnBVqMiQKq
    qDS5tDVVrZ4MqGHf

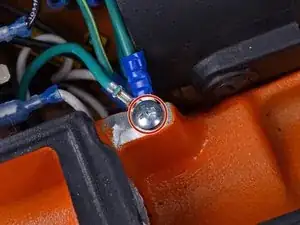

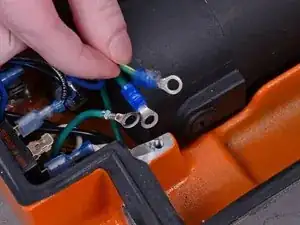

    • Remove the Phillips #2 screw holding the ground wires to the chassis.

    • Loosen the wires from each other.

    • The motor's ground wire is green with a yellow stripe.

    • Reassembly tip: there are three ground wires attached here that will need to be reinstalled upon reassembly.

  13. UYs51rGgIVQ5kdXP
    UYs51rGgIVQ5kdXP
    uxRXR6gVQigTH1oF

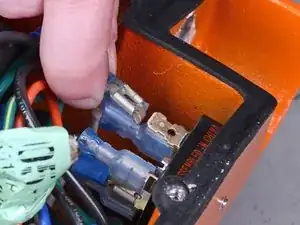

    • Remove the black wire's plug from the 4-pin rectifier.

    • These plugs have two wires each, so removing one plug removes two wires.

  14. rVDqabPIULtOSMLg
    rVDqabPIULtOSMLg
    hUZLFE2evbFp4ZeR

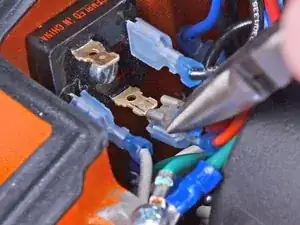

    • Remove the red/orange wire combo plug from the 4-pin rectifier.

    • Use needle-nose pliers if you can't reach this plug with your fingers.

  15. OM16SYASw2GTPGKB
    OM16SYASw2GTPGKB
    FEucvY1YwOaksFdb
    tTYEOT2yU21YITYx

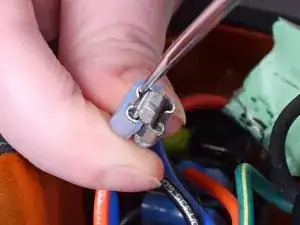

    • Be very careful with this connection, as even minimal bending can break the metal conductor in half.

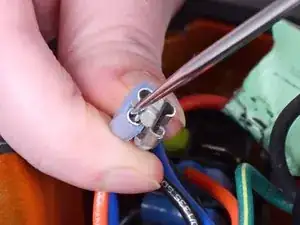

    • Use a pick to slightly pry up on the crimped metal arms holding the red and orange wires together.

    • Repeat for both sides to loosen the connector.

  16. MCIgsUDIkPkxZfZE
    MCIgsUDIkPkxZfZE
    d5fvdJT1eeDw5v5O

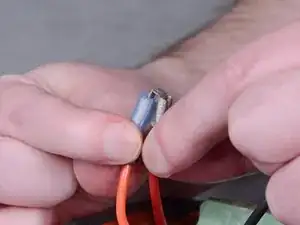

    • Be very careful with this connection, as even minimal bending can break the metal conductor in half.

    • Remove the red wire from the orange wire.

  17. 2lLOfMlGSHPSVx1D
    2lLOfMlGSHPSVx1D
    5elQ4DrxQ5HWWjml
    uHuatK5ONwRRknNk

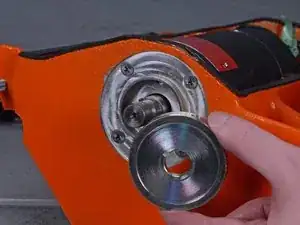

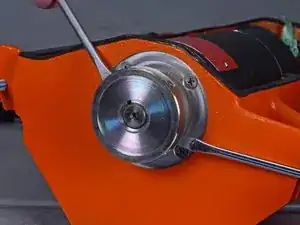

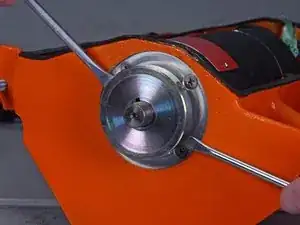

    • Use two flathead screwdrivers to carefully pry the inner flange off the motor shaft.

    • You may need to use the two screwdrivers to "walk" the flange off—it's press-fit onto the shaft. Try prying on various positions of the flange and rotating it as you work.

    • Remove the inner flange.

  18. PRmmCZfQIrZA4DtA

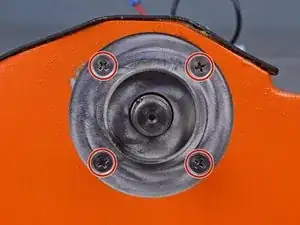

    • Remove the four Phillips #2 screws holding the motor in place.

  19. AFgrYSrZiEi1BGyP
    AFgrYSrZiEi1BGyP
    tAYXsJnGshUk3iPR
    meLVE6XPAGSal22m

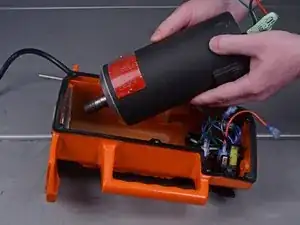

    • Grab the motor with both hands and tilt it slightly upward.

    • While keeping the motor tilted up, pull back and up to clear the electrical components behind the motor.

    • Remove the motor.

    • You may need to bend the thermal overload switch slightly in order to lift the motor out.

  20. mZ5CPOCu3aNLJrdl
    mZ5CPOCu3aNLJrdl
    efvVFjvWmn4oFNU2

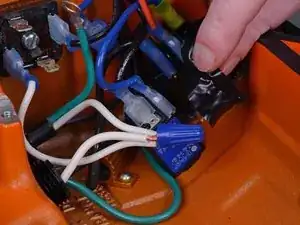

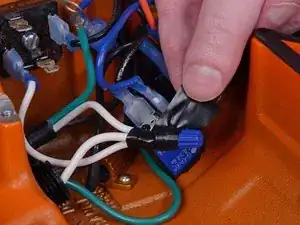

    • Remove the electrical tape from the twist-on wire connector connecting the three white wires.

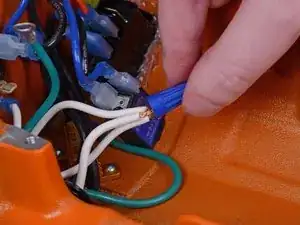

  21. MlwgqQscImxsNokL
    MlwgqQscImxsNokL
    yrldWC1YNmhRRaGj

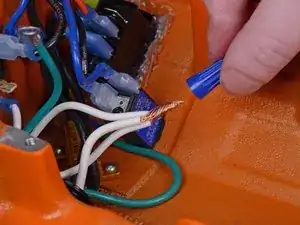

    • Remove the twist-on wire connector.

  22. FHEqkpbdJ53JmrOx

    • Twist the three white wires apart from each other.

  23. 52FGbjwkQPhtrfDS
    52FGbjwkQPhtrfDS
    CsJWsQgRlhNX1AjS

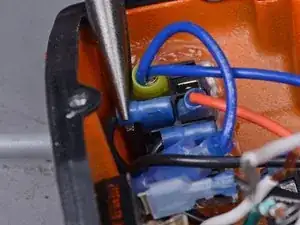

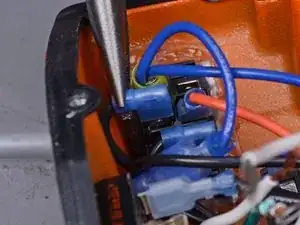

    • Remove the black wire from the switch assembly.

    • Use needle-nose pliers if you can't reach this plug with your fingers.

  24. vXUa4xmPTKJrUSUb
    vXUa4xmPTKJrUSUb
    oe65EFwWCCMUgogx
    Wa4PjBLFHHQtqVMu

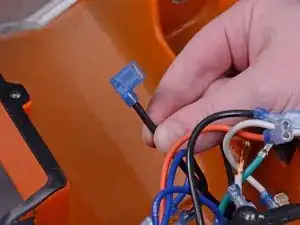

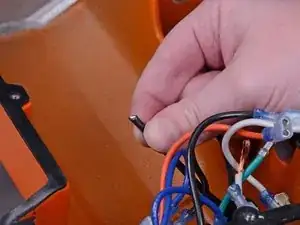

    • Use wire cutters to cut the angled plug off the end of the black wire so it can slide out of the power cord opening.

  25. ogOaAqtPrEoLWokn
    ogOaAqtPrEoLWokn
    1PIjeIPhZXkRAyfK

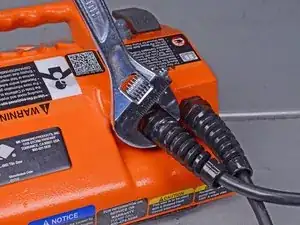

    • Use an adjustable wrench to loosen the hex nut closest to the wall plug side of the power cord.

  26. dKP4EEcUDg2dbNNK
    dKP4EEcUDg2dbNNK
    mR2kOnCYQubutSsr

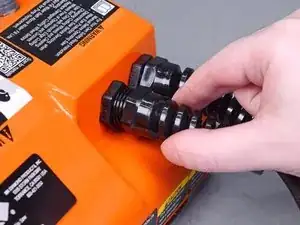

    • Pull back the flex guard from the cutting head chassis.

  27. W2UBEreGwNfMeKPP
    W2UBEreGwNfMeKPP
    6TZNKStVlaPUyLiT
    rEylD24xCVhLnTRs

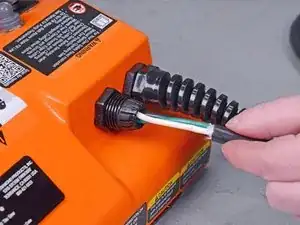

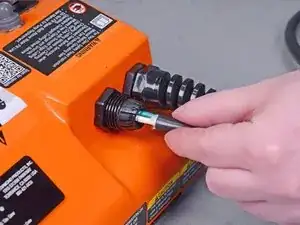

    • Make sure all power cord wires are disconnected before pulling the power cord out of the cutting head.

    • Grab the outer sheath and slowly pull the power cord out of the cutting head.

    • Remove the power cord.

  28. vRNbWQtT4r3GiMF4
    vRNbWQtT4r3GiMF4
    EOSNVCatgZaDiNI5
    bWjEptYYlaLmr45E

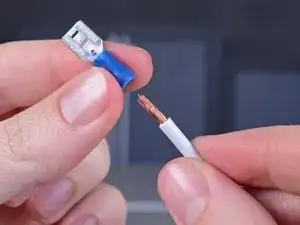

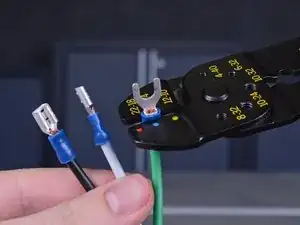

    • If your replacement power cord does not have quick disconnect plugs on the end of its wires, strip about half an inch of insulation off of each wire to install new crimp connectors.

    • Reassembly tip: This needs to be done after the cord is fed back into the cutting head, otherwise it won't fit.

Abschluss

To reassemble your device, follow these instructions in reverse order.
