Modal MD-SPBT01 LED Light Wiring Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

For this guide, we will be opening up the speaker and taking the defective LED wiring out so the light works again.

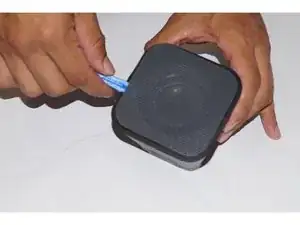

  1. FiPoYFbiqBPtMsJP
    FiPoYFbiqBPtMsJP

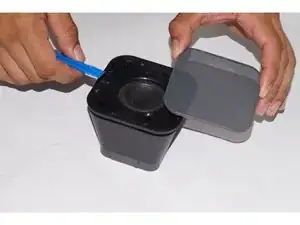

    3BK5JjKDAVZFFOGb

    • Use your plastic opening tool to pry the metal speaker cover off.

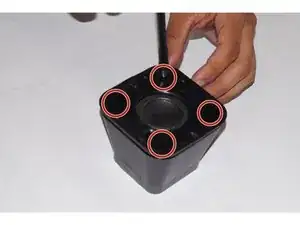

  2. KPP1eHAbxvT3mOQ3

    • You can now use the Phillips #00 screwdriver to remove the four screws.

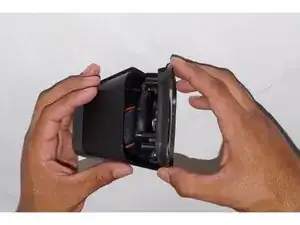

  3. YfAhQkElYqSbsjgu

    • With the screws removed, you can now remove the top piece of the speaker to gain access to the interior.

  4. xk2T1wbxfQsf3Cj1

    • Locate the LED wire connection and remove it from the mother board.

    • To make replacing the LED wiring easier, remove the speaker wire to fully disconnect the speaker from the mother board.

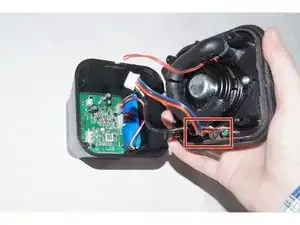

  5. ehIjTVUZDARx4McM

    • Now you can remove the wiring from the speaker side of the device.

    • It might take a bit of work to remove the wires because they are glued down on this side.

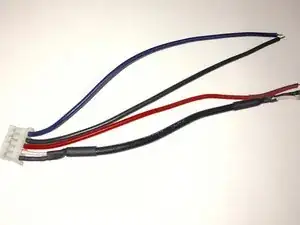

  6. FQeDU1VCiTCQ6tMQ

    • Now with the LED wiring removed, a new wire can be installed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
