Modal MD-SPBT01 Speaker Wiring Replacement

Geschrieben von: Nathan Hall
  • Kommentare: 3
Modal MD-SPBT01 Speaker Wiring Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

We will be opening up the speaker and replacing the wiring so the sound will work again.

  1. gIbd44Tt4UsR4PLo
    gIbd44Tt4UsR4PLo
    u1InQ5sdCSiiPvaR

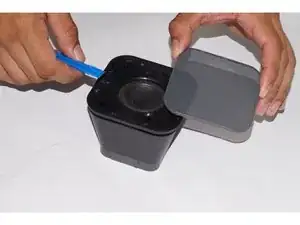

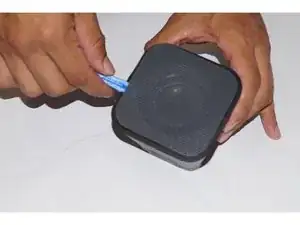

    • Use the plastic opening tool to pull the metal cover off the top of the speaker.

    The lighting on most of these photos is too strong, causing glare and hard shadows; additionally, be sure that your camera is focusing on the device and not other items (hands) in the foreground.

    Brian Blackburne -

  2. gyWUJVjXGaZqdRkX

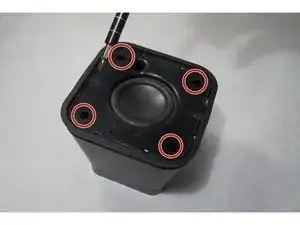

    • Remove the four screws that are inside the holes on the top of the speaker.

    • Use a Phillips 00 screwdriver to remove the 10mm screws.

    Avoid passive voice; instead, use active voice.

    Rather than having two items for this list, combine the tool required with the action described in the first step.

    Brian Blackburne -

  3. nHIQ3tApsbUBW3qM

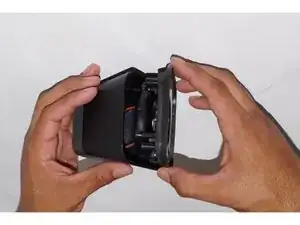

    • Pull the top piece of the speaker off to allow access to the interior.

  4. LTFXkYc6tw3sTR1L

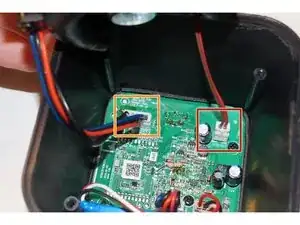

    • Locate the speaker wire connection and remove the wiring.

    • Locate the LED lighting wire and remove that as well.

  5. DXvmwBMKHNPnJTKc

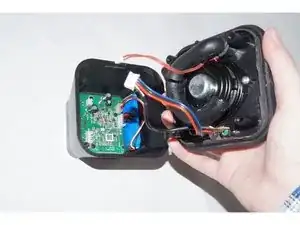

    • Once you disconnect the wires, you can remove the speaker.

    Photos should be in landscape orientation.

    Brian Blackburne -

  6. CM4xl1ROOkSUA4NM
    CM4xl1ROOkSUA4NM
    ljuE3wbyrDuOERiM

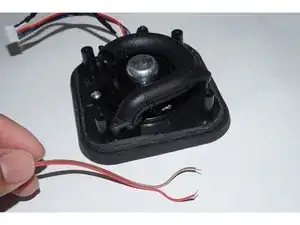

    • Remove the positive and negative connections for the wiring to fully disconnect the wire.

    • Now that you have removed the defective wiring, you can install a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
