Modal Rechargeable Wine Opener Power Button Replacement

Geschrieben von: Lauren Spicher
  • Kommentare: 2
Modal Rechargeable Wine Opener Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 30 Minuten

Einleitung

In this guide we will be showing one how to replace the forward and backwards buttons to a Modal Rechargeable Wine Opener in 5 quick and easy steps.

  1. EP3mDSVJYnnJMfvi

    • Carefully place the spudger under the black cylindrical ring and pry it off the top.

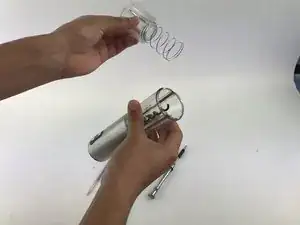

  2. JiKAuAKDEtAHhZqT

    • Remove the spring

    • Remove the spring guide as well to obtain clear access to the screws

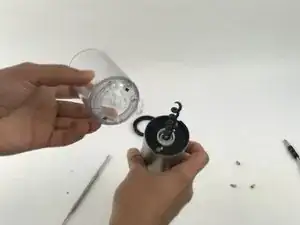

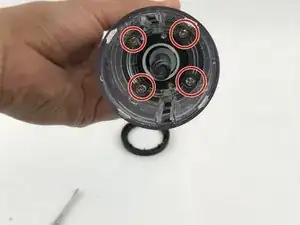

  3. tXp1aeNBRKqhZGiD
    tXp1aeNBRKqhZGiD

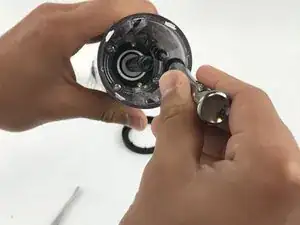

    euu241oiYRep5frW
    ELTSnDUiBIHmW3up

    • Remove all four 4mm screws with a J1 Screwdriver

    • Remove the clear cylindrical cap

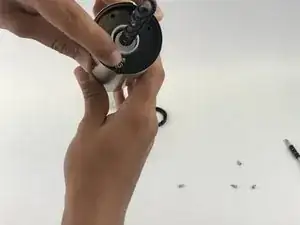

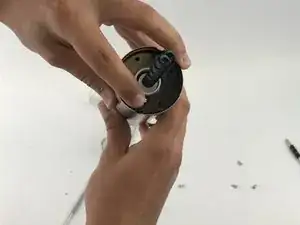

  4. sCjUit1DxW1dtPK2
    sCjUit1DxW1dtPK2
    S6fiOjtwbZiIlfDD

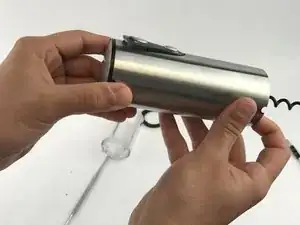

    WkHrgssKxMJKokKx

    • Apply pressure to both of the springs on the surface near the corkscrew, releasing the button port.

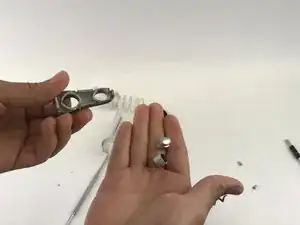

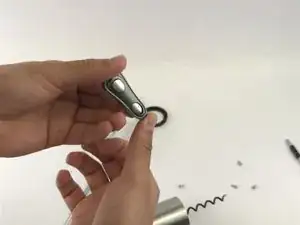

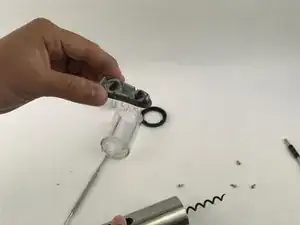

  5. WWfn2s4FVICJtqOK
    WWfn2s4FVICJtqOK
    ZEQcJNv34TQnJoEV
    WVgOfuctvNTDGQoJ

    • Remove the malfunctioning buttons from the plastic frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
