This guide will help you correctly replace a damaged inner tube in your Mongoose 20'' BMX.

  1. jOGc4fsEUOS6c14w
    • Flip the bike over so that only the handle bars and the seat are touching the ground

  2. LeKxC1loYwRGqTPT
    LeKxC1loYwRGqTPT
    wIIZWPFqWt2NbsMI
    C3ZAUquUadZgZTEw

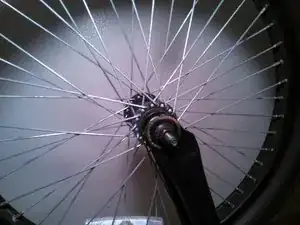

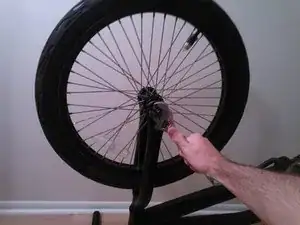

    • Using the wrench, loosen the bolts shown by placing the wrench on the bolt so that it is on tight and rotate counterclockwise. It may be hard at first, but as the bolt loosens it will get easier.

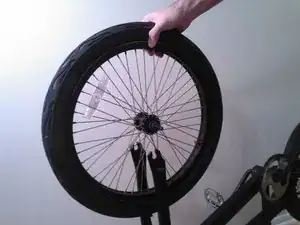

    • Now that the bolts are loose you may remove the wheel from the bike.

    • You may remove the bolts and washers, but this is not necessary to complete the replacement.

  3. PloJpRfZvpjM6VO1
    PloJpRfZvpjM6VO1
    B4sMqBio1TuCFVXE

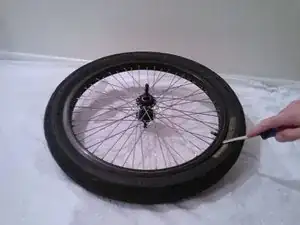

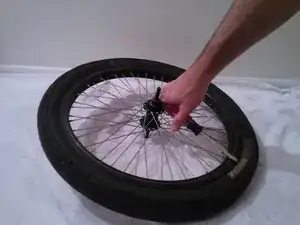

    • Wedge a screwdriver between the tire and the rim to pry it over the tire over the rim as shown. Part of the tire should now be on top of the rim.

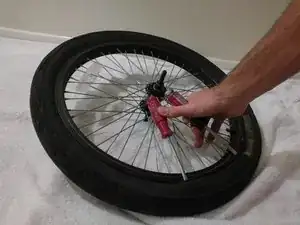

  4. fgEWPWnXxuNdOivP
    • Use a second screwdriver and repeat step 3 to create a four to six inch lip where the tire overlaps the rim.

  5. oKrdBRUENQKUM3ug
    oKrdBRUENQKUM3ug
    TkRqn4FpYMRBcZJY

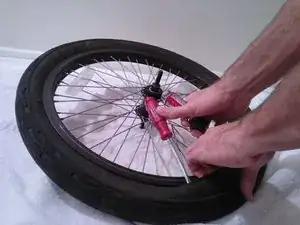

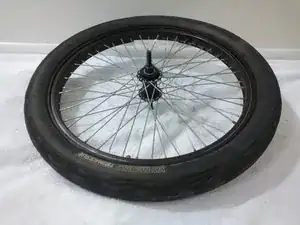

    • Place your fingers in between where the tire is already overlapping the rim and pry out the rest of the tire so that the whole tire overlaps the rim.

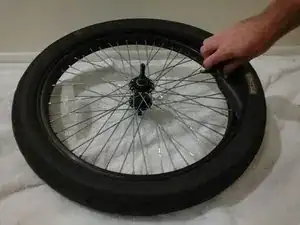

  6. FJUmWgsdJlmlhdeA
    FJUmWgsdJlmlhdeA
    IdPaHevVBH3VDVDT
    • Beginning with the nozzle, remove the damaged inner tube by pulling it out from in between the tire and the rim. Continue to pull out the rest of the tube.

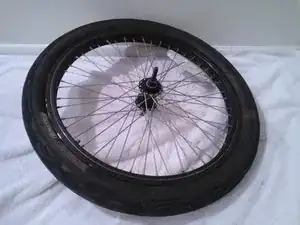

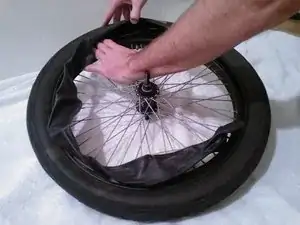

  7. xDFUNFA5VhTs1Fms
    xDFUNFA5VhTs1Fms
    1BeVL4vGsj21fGXx
    uKBsKULCOcW6Pjg1

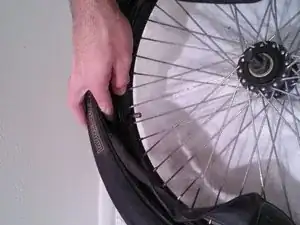

    • To put the new tube in the tire, begin by wedging the tube in between the tire and the rim. Make sure that you start with pushing the nozzle through the hole in the rim as shown. Then, continue to push the rest of the tube through the gap between the tire and the rim until the tube is no longer visible.

    • If the inner tube has a cap over the nozzle you'll have to remove it before you can pull it out of the rim. Just use your fingers to rotate the cap counterclockwise until it comes off.

    • Now just wedge the tire back in between the edges of the rim so that it is back to it's original position. Then place the tire back on the fork and tighten it.

    • Make sure you do all this before pumping up the tire because the tire will not fit in between the brake pads if it's fully inflated.

Abschluss

To reassemble your device, follow these instructions in reverse order.
