Monster DNA Speaker Replacement

Geschrieben von: Kevin Costello
  • Kommentare: 0
Monster DNA Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

45 Minuten

Einleitung

The sound can sometimes get muffled through both earpieces which probably means there is an issue in the speakers. If the speakers themselves are the problem, then there may not be much of a chance of repairing the existing pair. If the speaker is not functioning properly it may need to be replaced altogether.

  1. DCrxJaIfgTiHYJgu
    DCrxJaIfgTiHYJgu
    w5vAjiPhjm4vUWRO

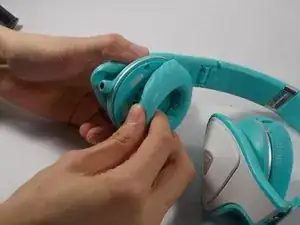

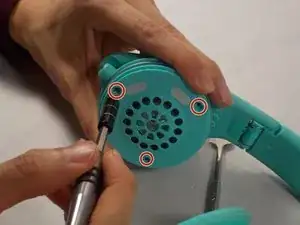

    • Remove the ear cushions and use a Phillips #2 screwdriver to unscrew the three 5mm screws.

    • Desolder the wires to completely remove the speaker.

    • Take note of the proper location of the wires reassembly.

    • Use a heatgun to loosen the glue holding down the speaker.

    • Be careful to take safety precautions such as gloves as not to cause injury.

  4. NZLKQk2iiQ6iqiJm

    • Pry the speaker out using a plastic opening tool or metal spudger.

    • Using too much force will damage the headphones and the new speaker may not go back into place properly.

  5. FfZAR61YH1aLyoVb

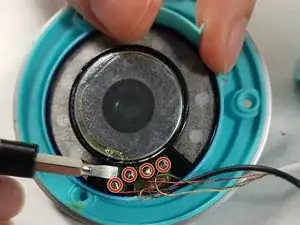

    • Insert new speaker and solder the five wires into corresponding positions onto the new speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
