Montgomery Ward GEN-39500 Antenna Replacement

Geschrieben von: Dustin Platt
  • Kommentare: 0
Montgomery Ward GEN-39500 Antenna Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 20 Minuten

Einleitung

The antenna receive an AM/FM radio signal. This guide will help you replace your antenna in case it is damaged.

  1. 3jHfsZhlPZOBLati

    • Remove the nine 35 mm Phillips screws securing the back cover of the case.

  2. 1hPmGNv2AqgpnPMt

    • Carefully remove the back cover.

    • Soldered wires connect electronics on the back cover to the internal electronics. Be careful not to break any connections.

  3. NPwQSujrKxXRMwR5
    NPwQSujrKxXRMwR5
    6TPidkR6A5mMCJHE

    • Unplug the black and yellow wires connecting the power supply unit to the rest of the electronics:

    • This is not necessarily required. This step is to allow the back cover more movement as you work on the inside of the unit.

  4. Fr3HSdqL4BKXUtry
    Fr3HSdqL4BKXUtry
    Ahh4RDXcph1KTgH3

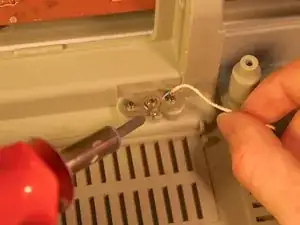

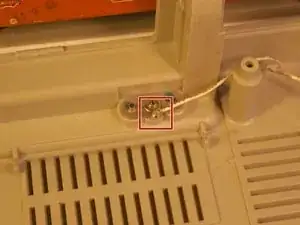

    • Unsolder the wire connecting the antenna to the radio.

  5. RlLShpTLvasPWJUJ

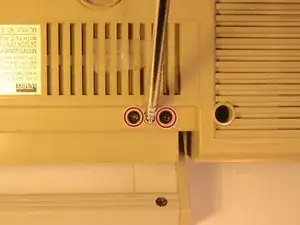

    • Tilt the back cover up and remove the two 7.5 mm Phillips screws holding the antenna in place.

  6. KsNkKglF16BBZYBf

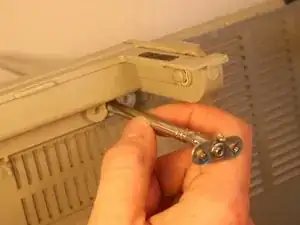

    • Remove the antenna.

Abschluss

To reassemble your device, follow these instructions in reverse order.
