This is a guide for replacing the cassette player on the left side of the unit.

  1. 3jHfsZhlPZOBLati
    • Remove the nine 35 mm Phillips screws securing the back cover of the case.

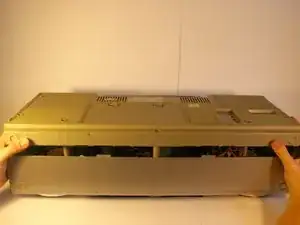

  2. 1hPmGNv2AqgpnPMt
    • Carefully remove the back cover.

    • Soldered wires connect electronics on the back cover to the internal electronics. Be careful not to break any connections.

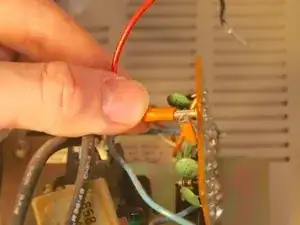

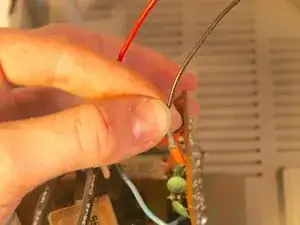

  3. NPwQSujrKxXRMwR5
    NPwQSujrKxXRMwR5
    6TPidkR6A5mMCJHE
    • Unplug the black and yellow wires connecting the power supply unit to the rest of the electronics:

    • This is not necessarily required. This step is to allow the back cover more movement as you work on the inside of the unit.

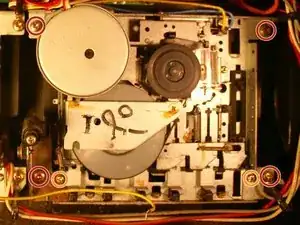

  4. AQTp5PKOmWLasM2Y
    • Remove the following 6 screws:

    • Four 25 mm Phillips

    • Two 2.5 mm Flathead

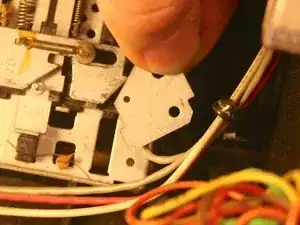

  5. q3XpoKANeUA3nfRR
    • Remove the small steel plate on the right-hand side.

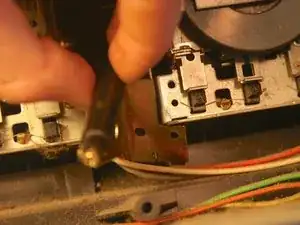

  6. yvuAsi2twFcgO2bE
    • Move the brass plate with attached pneumatic cylinder on the left-hand side.

    • Detach the plate at the pneumatic cylinder and leave the plate attached to the torsional spring.

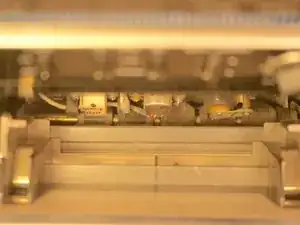

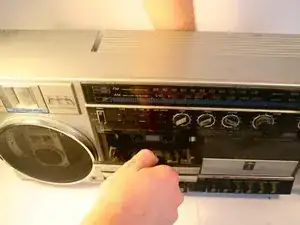

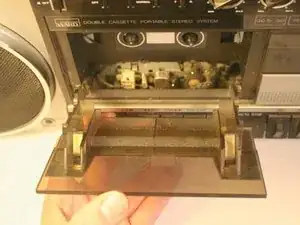

  7. SftrqvnowovIa6c1
    SftrqvnowovIa6c1
    SPLOWJDSDKDsfoWO
    COUK4TEoxZPdLcUq
    • Stand the unit up and press eject to open the door on the cassette player.

    • Gripping the cassette player from the back, lift upwards on the door to unclip it from the bar around which it rotates. This may take some effort.

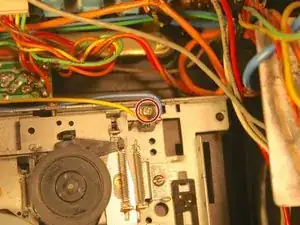

  8. G2SG1iyDVHKaeXNf
    • Remove the 5 mm Phillips screw holding the blue and yellow wires in place.

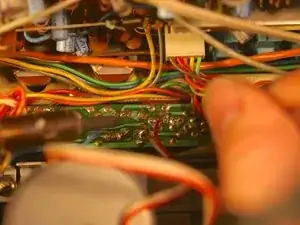

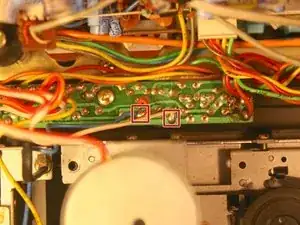

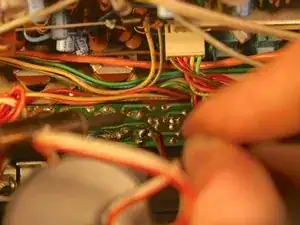

  9. iWWRIFqhgwdEQPqr
    iWWRIFqhgwdEQPqr
    lFNYBSKtWgMCRWEP
    cWMN2OeJ3eiQCCWW
    • Unsolder the red and white wires leading from the cassette player unit.

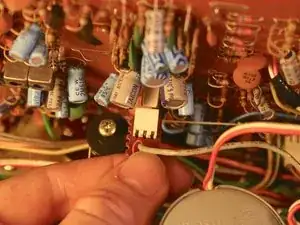

  10. KKamy6IVym1BVdRt
    • Unplug the grey wire leading from the cassette player.

  11. mSTwmcyPdM3RfeRN
    • Remove the cassette player.

Abschluss

To reassemble your device, follow these instructions in reverse order.
