Motor and Cord Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

1 Stunde

Einleitung

This guide will teach you the inner workings of both the motor and cord. You will need to know how to use a screwdriver as well as pliers. Make sure to familiarize yourself with the basics of crimping.

  1. PtNTuwVMKfUDLFWo

    • Remove the highlighted screws shown with a Phillips #2 Screwdriver.

  2. SfqGDUJ5rHZ2mbvS

    • Remove the motor from the motor mounting plate. Pull the motor and cord to the side.

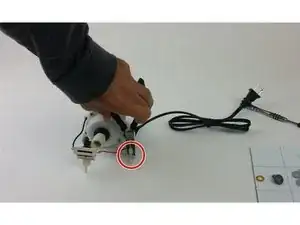

  3. gkNthodA6x1O2V4s

    • Use pliers to grip the crimp.

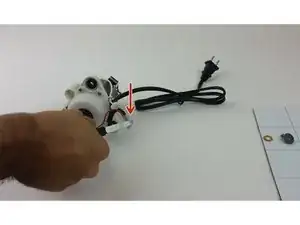

  4. KuJhelIQsKPEcVDU

    • Open the crimp by pressing it opposite to how the crimp was pressed. Repeat for second crimp.

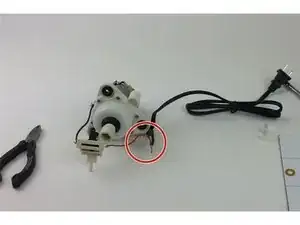

  5. lS5rvMtNWYNXlXyc

    • Remove the crimps from the wires by pulling them off.

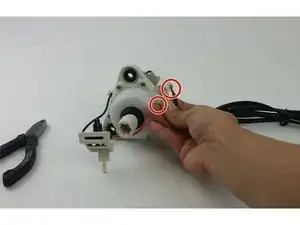

  6. VJq1pWkW2W1fhnCm

    • Untwist the brown and the silver wire by gripping the tip and unwinding them. Do the same for the second wire.

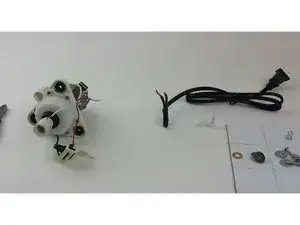

  7. jZdvgNMXHpII34ZU

    • Separate the cord and motor.

    • Now, depending on whether the cord or the motor was broken, head to the device page to order a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
