Motorola 120c Microphone Replacement

Geschrieben von: Megan Elrod
  • Kommentare: 0
Motorola 120c Microphone Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

3 - 5 Minuten

Einleitung

This process involves removing the battery, outer case, and motherboard. After, the microphone can be removed.

Werkzeuge

  1. VwlaVu6AmJYseS4E
    VwlaVu6AmJYseS4E
    EnXR4vUQwCh5p55n

    • Hold the phone and pull the back latch down towards the bottom.

    • Remove the back panel by releasing the latch and lifting from the top.

  2. yAwPSs6fT1mXm6nT
    yAwPSs6fT1mXm6nT
    kJ1L6bRlRXwISTFy
    pa6CKBQIv1Aqiq4C

    • Remove the battery by pushing the bottom end towards the top, then lifting up.

  3. roXGhhiGNyelPwsx
    roXGhhiGNyelPwsx
    4cW3HtZ3WtJSeXmF
    ndObCRFKBsXf2osV

    • Once the battery is out, unscrew the six 7.0 mm screws with T-6 screwdriver.

    • Once the screws are removed, simply lift the back panel off

  4. v1fvBHYSvYXPCm4y
    v1fvBHYSvYXPCm4y
    p12OBJwWivVPYbPG
    gheaZynShmBbJmnq

    • Remove the motherboard by lifting it up and out.

  5. f4hTLkeAUqvRWHIh
    f4hTLkeAUqvRWHIh
    2jTfLHRClHMvWmSj

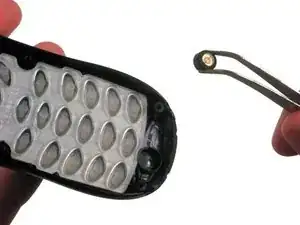

    • Use tweezers or fingers to remove the microphone.

    • Note that the keypad does not need to be removed to get to the microphone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
