Einleitung
This guide will show you how to replace the screen and the plastic display assembly along with it.
Werkzeuge
-
-

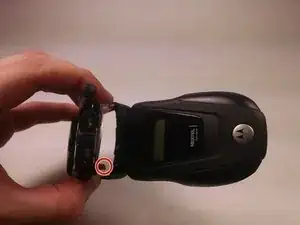

Lift the battery from the right side.
-
After the battery has lifted about a 45 degree angle remove from phone.
-
-
-

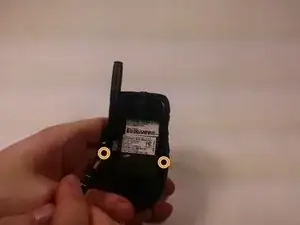

Remove all six screws
-
The two top screws here
-
The two middle screws here.
-
And the two bottom screws here, they are covered by plastic pieces that first must be removed with the nylon Spudger.
-
-
-

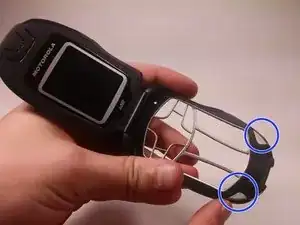

then carefully lift the front off the phone.
-
Marked wire will have to be solderd when re-connecting new screen
-
Speakers are connected to the screen here.
-
Abschluss
To reassemble your device, follow these instructions in reverse order, soldering wire onto new screen.
