Einleitung

This repair guide describes how to replace the number keypad of the Motorola C290.

  1. M5cYhE3KsANm3DwT
    M5cYhE3KsANm3DwT
    P4Fj6FItHkjOyMZr

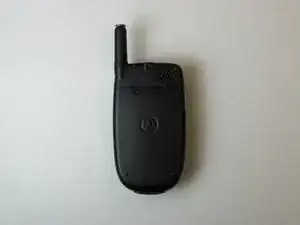

    • Position Motorola C290 so that the back of the phone is facing up.

    • Apply pressure to the back cover while simultaneously sliding it downwards.

    • Note: It may be easiest to apply pressure to the ridges at the top of the back cover.

  2. qhFLZKdqZdCC3ntR
    qhFLZKdqZdCC3ntR
    JgevhfBGAeuaRtOe

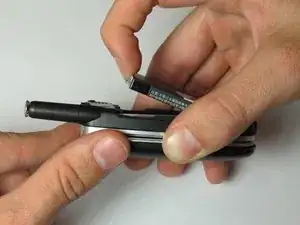

    • Place your finger in the notch at the top of the battery.

    • Gently lift and pull out battery.

  3. QvfvYDoT4irKCLlq
    QvfvYDoT4irKCLlq
    wKvFr26UXqN3mwjQ
    x5MpnUMcRFlU1nWX

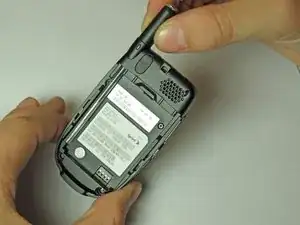

    • Unscrew antenna head from top of phone by twisting counterclockwise.

    • Pull the antenna out through the top hole and set aside.

  4. H1kgBoWAxtJdursX
    H1kgBoWAxtJdursX
    O6phCGPRqa2YXlIe

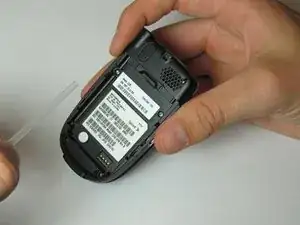

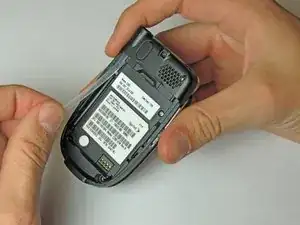

    • Remove the plastic tube by lifting the bottom and pulling out towards yourself.

  5. hJ5ZtYuYVd62DamZ
    hJ5ZtYuYVd62DamZ
    NgmiLAYm51LAqXiS
    RMSxaOgqTEBvLjRm

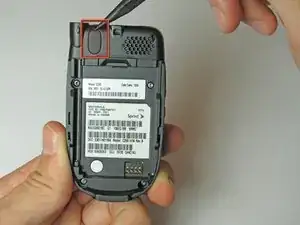

    • Insert a Spudger (or pushpin) into the top notch of the rubber cover, located on the top of the phone.

    • Press down and rotate the Spudger lifting the rubber cover. Remove and set cover aside.

    • Note: This will reveal a screw. Five screws should now be visible.

    • Using a T6 Torx screwdriver, unscrew all 5 screws and carefully set them aside.

  6. ImGyfNPKM3I5IhKw
    ImGyfNPKM3I5IhKw
    yhkauFQqrgk1OHdW

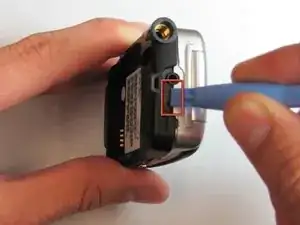

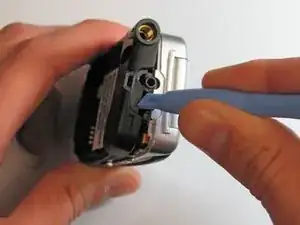

    • Insert the plastic opening tool in the groove at the top of the phone.

    • Rotate the tool to create an opening between the logic board cover and case.

  7. JBTLg2wOBDWgeSwg
    JBTLg2wOBDWgeSwg
    VVS4QB3OIMvvSHJA

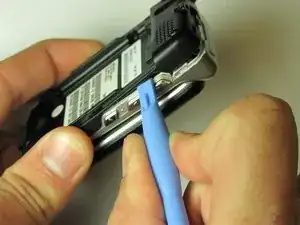

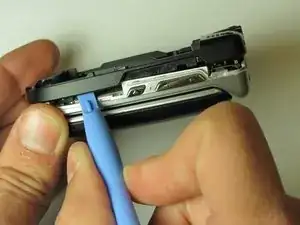

    • Slide the plastic opening tool along the groove, until the entire logic board cover has been opened.

    • Remove logic board cover and set aside.

  8. lYTJWlXSPDbOxLgj

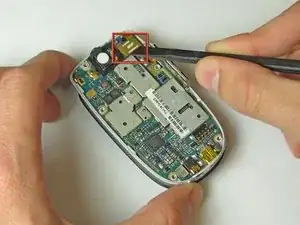

    • Use the Spudger to detach the screen wire from the logic board.

  9. xqwuwNcmP6eUKWdU
    xqwuwNcmP6eUKWdU
    tNVI1FPlit4yC1R5
    ArbNotbdpKy22KYj

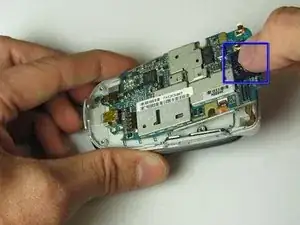

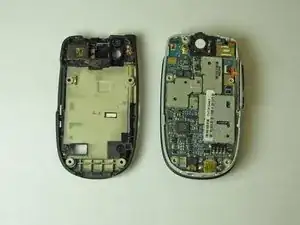

    • Insert the Spudger into the slot on the top of the logic board.

    • Gently pry to loosen the top of the logic board.

    • Note: The logic board may initially seem glued to the phone. It is not glued but does require input of force to remove.

    • Grab the top of the logic board and pull at an angle to remove.

  10. lcDuBkYRQjuHRtUP

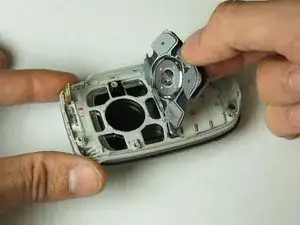

    • Use your fingers to pull out the keypad.

    • Note: The keys and rubber backing are one piece.

Abschluss

To reassemble your device, follow these instructions in reverse order.
