Motorola C290 Speaker Replacement

Geschrieben von: Philip Ybarra
  • Kommentare: 0
Motorola C290 Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide gives step-by-step instructions on repairing the speaker for a Motorola C290 cell phone.

  1. ZWc5BqyZLVfTbCq4
    ZWc5BqyZLVfTbCq4
    RANnjVNaotVN4PDB
    LsrMu2R35HVRfv3R

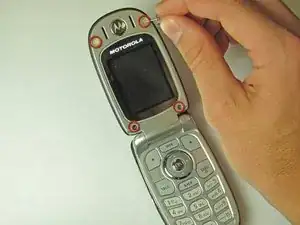

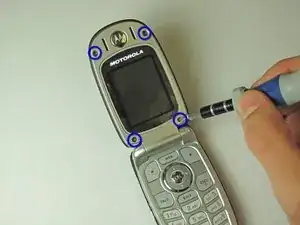

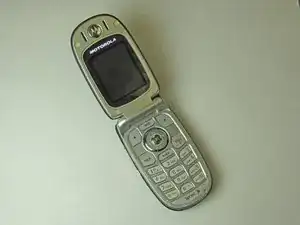

    • Flip open your Motorola C290.

    • Remove rubber stoppers located around main screen using a push pin.

    • This reveals four screws.

    • Use a Torx T6 Screwdriver to unscrew the four screws.

  2. Pjmw5olSc51ixOrB
    Pjmw5olSc51ixOrB
    eJuMuFNTIqXdahQr

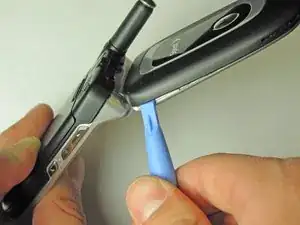

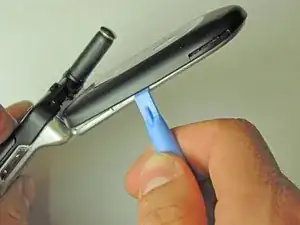

    • Use a plastic opening tool to pry open a gap between the top cover and the face of the phone.

    • Slide the plastic opening tool along gap and pry open case.

    • Remove top cover.

  3. KNBTAGTRWYDSVL2P
    KNBTAGTRWYDSVL2P
    LHbNFRShibhbY3v6

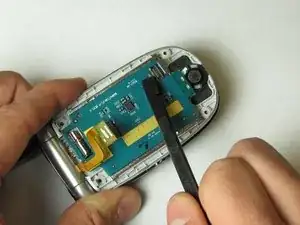

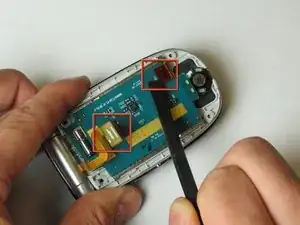

    • Unclip circuit attachments located on back of screen circuit board using a Spudger.

  4. RF3rn3NBpJD1JZSb
    RF3rn3NBpJD1JZSb
    KYKOHpTElykaaKhY
    YTuL2XQumjUHlNLI

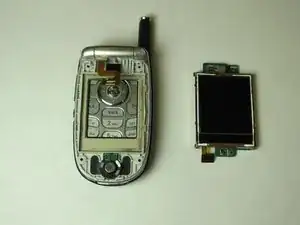

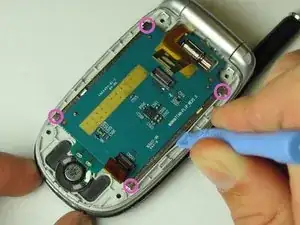

    • Insert the plastic opening tool between the metal screen components and the plastic frame at the corners.

    • Firmly pry the screen components from the frame with a twisting motion

    • You will need to apply a good amount of force as you pry, twisting in a right-to-left motion.

    • Completely remove screen components from frame.

  5. p6aMRUFDxNPUTy1F
    p6aMRUFDxNPUTy1F
    gsXPIHu5Keuc3ssR
    aDMZFg51oXtRYqmO

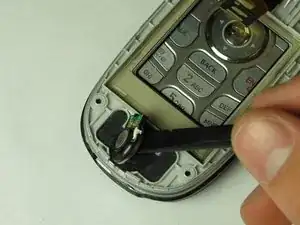

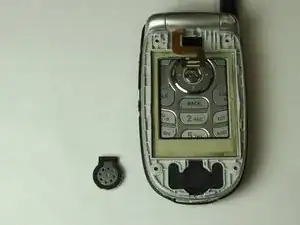

    • Insert spudger underneath the speaker.

    • Gently break the sticky seal between the phone case and speaker.

    • Lift the speaker off the phone case.

    • Note: It will be necessary to destroy the seal to remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
