Motorola C350 Ear Speaker Replacement

Geschrieben von: Vincent Monteil
  • Kommentare: 0
Motorola C350 Ear Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace the earpiece speaker in your Motorola C350.

  1. yeJdCTIF6fWAZaGf
    yeJdCTIF6fWAZaGf
    GmUBOpJohMDvqXLU

    • Use your finger to press the button and free the device rear case.

    • You may have to force it a bit more to free its bottom if you open it for the first time.

  2. NpBrVNW6AVR3Hphn

    • slide the black button to free the battery so you can grab it with your other hand.

  3. VqM5MqT21iYHilPK
    VqM5MqT21iYHilPK
    IflglR2PFoqLCQF6

    • You will see one plastic clip on each side of the device. Use your thumbs to push them apart and being able to separate the front case from the device other components.

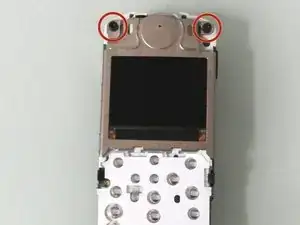

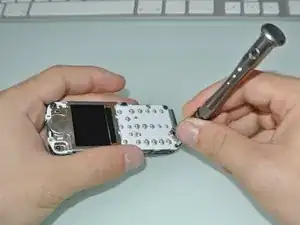

  4. AHWyyMtkIXwlaNCv
    AHWyyMtkIXwlaNCv
    MQ2neCr4hLfAqCXZ

    • Remove the four T6 Torx Screws

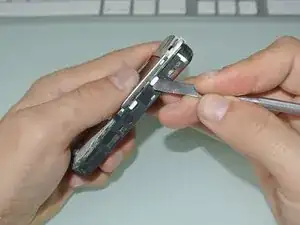

  5. 5mMBl3tfvNleSixY

    • Use a metal spudger togently free the screen/ear speaker metal case.

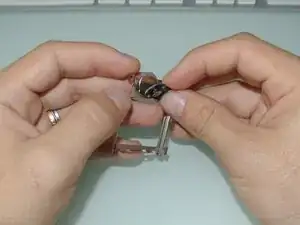

  6. ETZXhHqiEHKPrttO

    • Slowly peel the ear speaker off the case.

    • Be really careful about the small plastic pin which can be easily lost.

Abschluss

To reassemble your device, follow these instructions in reverse order.
