Motorola C350 Keyboard Replacement

Geschrieben von: Vincent Monteil
  • Kommentare: 0
Motorola C350 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Use this guide to replace the rubber keypad on your Motorola C350.

  1. yeJdCTIF6fWAZaGf
    yeJdCTIF6fWAZaGf
    GmUBOpJohMDvqXLU

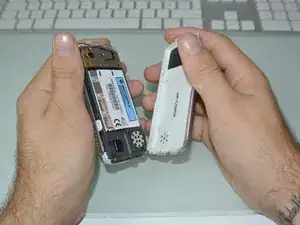

    • Use your finger to press the button and free the device rear case.

    • You may have to force it a bit more to free its bottom if you open it for the first time.

  2. NpBrVNW6AVR3Hphn

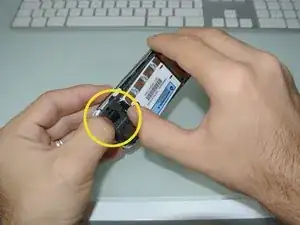

    • slide the black button to free the battery so you can grab it with your other hand.

  3. VqM5MqT21iYHilPK
    VqM5MqT21iYHilPK
    IflglR2PFoqLCQF6

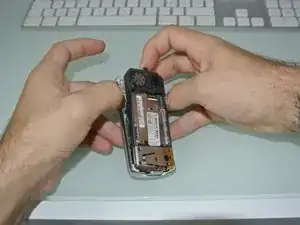

    • You will see one plastic clip on each side of the device. Use your thumbs to push them apart and being able to separate the front case from the device other components.

  4. AVfCItZQTyEAD6pw

    • Use your thumb to gently peel the keyboard off the front case.

    • Be careful, the plastic on which the keyboard is stuck is pretty fragile.

Abschluss

To reassemble your device, follow these instructions in reverse order.
