Motorola C350 Upper Speaker Replacement

Use your finger to press the button and free the device rear case.

slide the black button to free the battery so you can grab it with your other hand.

You will see one plastic clip on each side of the device. Use your thumbs to push them apart and being able to separate the front case from the device other components.

Remove the 4 T6 Torx screws

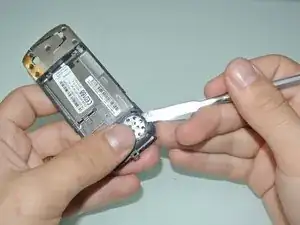

Use a metal spudger to pell off the four metal clips and separate the motherboard and keyboard from the main plastic part.

The last thing you need to doto access the Logic Board is to separate the Keyboard/Screen block just taking apart with your fingers.

The upper speaker is kept in place by a metal plate.

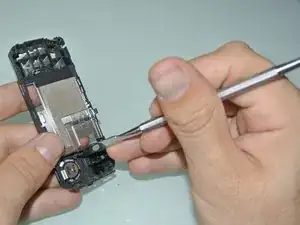

Use a metal spudger to free the 3 clips on the back side

Insert your metal spudger to remove the metal plate and free the upper speaker.
