Einleitung

Motherboard installation requires a teardown of the device.

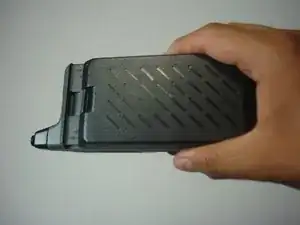

  1. kOy1otjNwNw2tFVd
    • Remove the battery by sliding it down the rails to which it is connected.

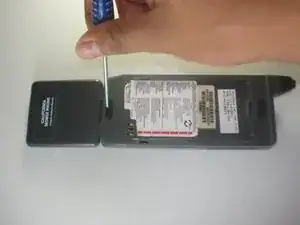

  2. TmpQdHX43jkAlE6G
    • Find a flat head or Phillips head screwdriver.

    • Insert the screwdriver into the holes in the plastic rod connecting the key pad guard to the rear casing.

    • Use the screwdriver to push the rods towards each other until they click out of their locked position.

    • Note: This may require a large amount of force.

  3. JaEXPNbThJArQsfp
    • Slide off the antenna guard and locate the four clips on the exterior of the rear casing.

    • Simultaneously push the clips outward while lifting the rear casing and keyguard away from the front casing.

    • Remove the key guard from the rear casing by taking it out of its position.

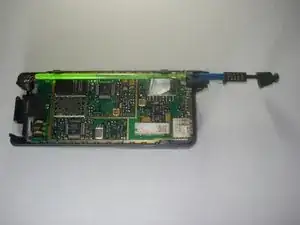

  4. asAutCfrnoeB3e62
    • Locate and unplug the black component of the antenna from the motherboard.

    • Under the black component should be a blue component. Unscrew this component in order to free the antenna.

  5. QqyuJYG5fEAYlrYW
    • Slide the antenna out of the green tubing and slide the green tubing out of it's corresponding hole on the motherboard.

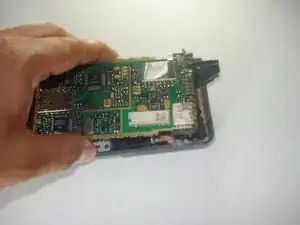

  6. 3DeDLyxbxChetHNu
    • Lift the motherboard out of its location in the front casing.

    • Do this slowly and gently so that none of the motherboard's components are damaged.

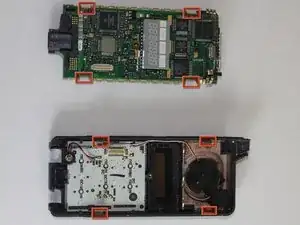

  7. vuBsEJMCC2JeFJLX
    • With your new motherboard, hold the LCD side of the motherboard face down. Align the four clips on the front casing with the four notches on the motherboard.

    • While doing so, insert the LCD into the compartment in the front casing.

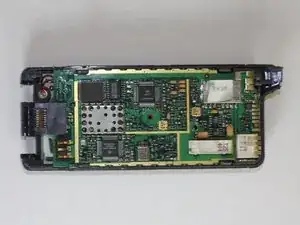

  8. uYGjBLstT2plyOKF
    • Press firmly on the motherboard until it is snug inside the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
