Motorola Cliq Rear Speakers Replacement

Turning over your phone, place two fingers on the back cover and apply pressure away from the camera to slide the back cover off.

Pinch the battery pull tab located below the camera, pull it upwards, and remove the battery.

Wedge a plastic opening tool behind the panel covering the camera, pry it up, and remove it using your fingers.

Remove the six 4.0 mm T4 Torx screws which line the edge of the back of the phone.

Turn the phone over and slide out the keyboard.

Wedge a plastic opening tool where the keyboard meets the back casing of the phone next to the headphone jack.

Carefully pry open the back casing along the keyboard's edge until at least two corners of the back casing are separated from the keyboard.

Carefully separate the back casing from the rest of the phone.

Gently pry ZIF connector upwards using the flat end of a spudger tool.

Press your thumb against the orange power cable and pull it down slowly to disconnect the power cable from the bottom of the keyboard.

The rear casing and the rest of the phone should now be completely separated.

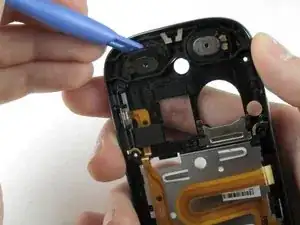

Insert a plastic opening tool in the gap right above the speakers.

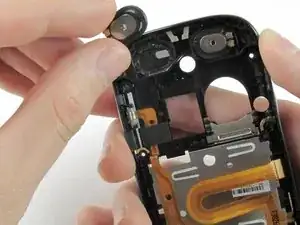

Pry upwards to lift the speaker out of its bracket.

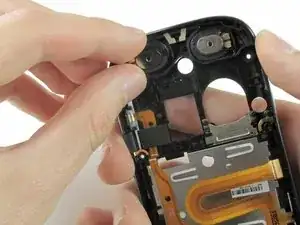

With your fingers, carefully remove the speaker.

Repeat this process to remove the remaining speaker.
